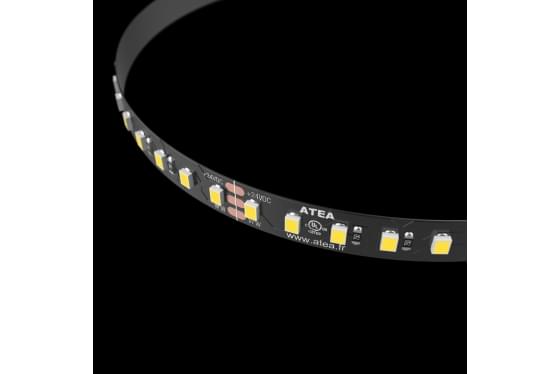

ATEA Ledstrips ULTRACRI 98 - Dynamic White

Tunable white led flex strip between 1800K & 6000K
A4102.

  • Color Rendering CRI >96 (+/-2) (10 & 23 w/m) | >94 (+/-2) (31 & 43w/m)
  • Color CCT 1800K - 2100K - 2400K - 2700K - 3000K - 3500K - 4000K - 5000K - 6000K
  • Luminous Efficacy 90 lm/w - 110 lm/w
  • Power & number of Led 10 w/m-120 led/m | 23 w/m-240 led/m | 31 w/m-224 led/m | 43w/m-256 led/m
  • Cut 100 mm (10w/m ) | 50 mm (23w/m) | 71.4 mm (31w/m) | 62.5mm (43w/m)
  • Dimensions 5000x10x2 mm (23 & 10 w/m) | 5000x12x2 mm (31w/m) | 3000x12x2 mm (43w/m)
  • Ambiant temp. -10°C / + 40°C
  • Input voltage 24Vdc

    See specification for more information or click here.
