Body

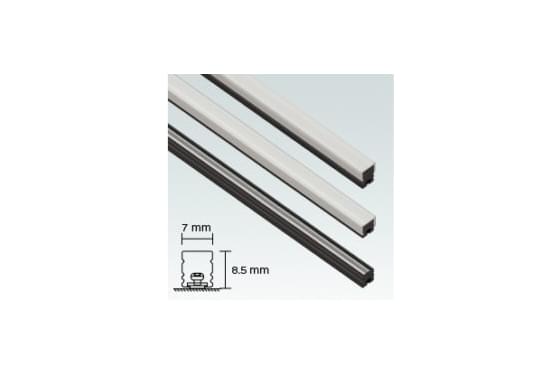

Surface-mounted modular system in extruded aluminum with dotless light effect.
Available in different length configurations starting from 50mm with an increment of 45mm.
It also includes magnets for easy installation, along with U mounting clips or L mounting brackets.
Different square section: 8x7mm, 9x9mm, 12x9mm.

Mounting options:
U mounting clips.
L mounting brackets.

* Plastic free packaging.

LED Sources
SMD.
CRI: 93 & 97 | R9: >90 | CCT: 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.

Optic
Microline 8x7 : Opal Rigid Diffuser (RD).
Microline 9x9 : U Shaped Diffuser (UD).
Microline 12x9 : U Shaped Diffuser (UD).

Driver
Driver not included to be ordered separately.
Work with 24V Constant Voltage LED Driver, max. 3A positioned remotely.

Accessories
Mounting accessories included.
Power extension cable Art. 2D58 to be ordered separately.

Applications
Miniature linear light with a disappearing look delivers a homogenous and diffuse light effect, making it the ideal product for showcase and under-cabinet illumination.

Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
