Formalighting Microline 7x7 chain System & Linear
Body

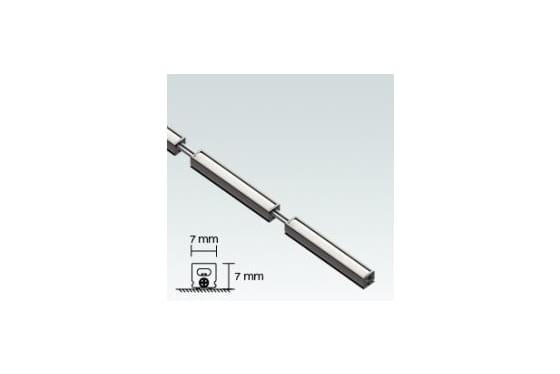

Surface mounted modular flexible LED system in extruded aluminium.
Available in different length configurations based on 49mm link with increment of 59mm.
Section 7x7mm.
Mounting options:
Integrated magnets for easy installation.
L mounting brackets.
U mounting clips.
* Plastic free packaging.
LED Sources
SMD.
CRI: 93, 95 & 97 | R9: >90 | CCT: 1800K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K.
3-Step MacAdam.
Other CRI and CCT options available on request.
Optic
Extra Wide Beam Angle.
Opal Diffuser (OD), Lenticular Transparent Diffuser (TD), Opal Rigid Diffuser (RD).
Driver
Driver not included to be ordered separately.
Work with 24V Constant Voltage Driver positioned remotely.
Accessories
Mounting accessories included.
Power extension cable Art. 2D58 to be ordered separately.
Applications
Curvaceous miniature linear light with a disappearing look delivers an homogenous and diffuse light effect, making it the ideal product for showcase and under cabinet illumination.
Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
