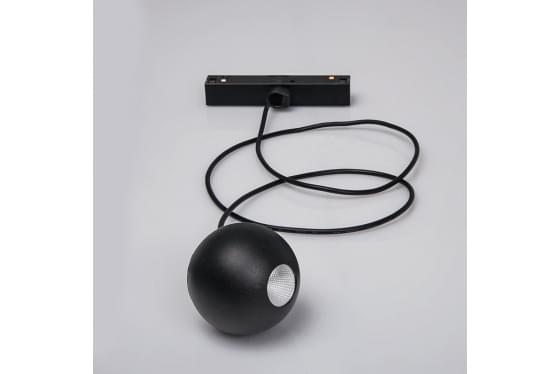

Alphabet SPHERE PENDANT D4.8
Magnetic Track Spotlight
Lifetime up to 50.000h
3 MacAdam step
External extruded body in aluminium
Available colours: black and white or special ral
Insulated extruded body in PVC
Input Voltage:
2 circuits: 2x +/- 15A/0-60V dc
1 circuit + Data Bus: +/- 15A/0-60V + D+/D-
Power Factor: 0.9
CCT:3000K or 4000K
CRi: 85 & 95 optionally
Color tolerance: 2 MacAdam
THD<20%
Electronic short-circuit protection
Overload protection
Overtemperature protection
Protection against "no load" operation
Operation temperature: -25° +45°
Operation lifetime 50.000h
5 years warranty
L90B10 @ 50.000h
Ambient temperature +24°
