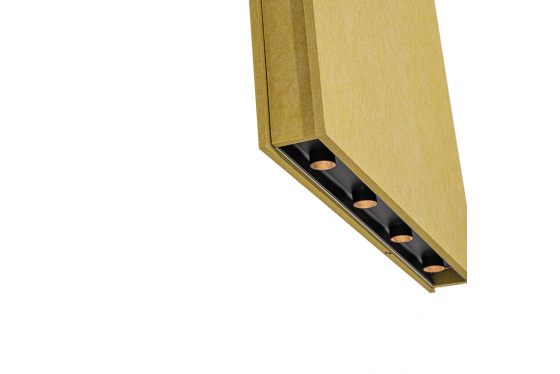

Alphabet KAPPA48 ACOUSTIC (48mm)

The accoustic series by Alphabet comes from the search for new solutions dedicated to well-being in working spaces and in the common areas in hospitality, integrated with the lighting project. Thanks to its big surfaces and the innovative panel reduces up to 70% of the reverberated sound The sound-absorbing panel is inserted in the same aluminum profile, lending itself to original compositions of elements with light source. The accoustic series LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for ceiling and pendant mounting, providing direct and indirect light emission through SMD 5*2W, 1100Lm each. Luminaire equipped with the latest generation of well-known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers ON-OFF or dimmable. Custom colors and fixtures are available on request.

“KAPPA 48 ACOUSTIC” Pendant...are LED profiles, made of an extruded aluminum, powder-coated with with incorporated acoustic panel. Designed for pendant mounting, providing direct light emission through SMD 5x2W, 1100Lm each. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3. Drivers On-Off or dimmable.
Features:
• Available from 50cm up to 200cm.
• Two different CRi (80 or 90).
• Three different CCT (2700K, 3000K or 4000K).
• Four different Optics-Diffusers (15® , 30® , 45® or Wall Washer).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black, Grey or Special RAL powder coated.
• L80 B20 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• UGR <16.
