Alphabet ALPHA HEXAGON ACOUSTIC

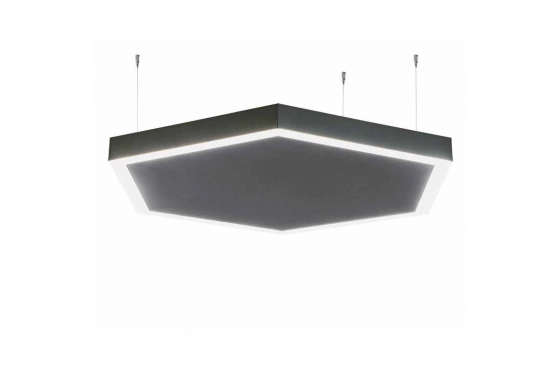

“ALPHA HEXAGON ACOUSTIC” Pendant is a LED profile luminaire, made of an extruded aluminum, powder-coated with incorporated acoustic panel. Providing direct and indirect light emission through a diffuser made either of satined polycarbonate for an almost homogeneous emission of light, or of mat microprismatic for reduced UGR. Luminaire equipped with the latest generation of well-known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.

Features:
• Available in Standar Diameter 60cm, 90cm, 120cm or 180cm.
• Three different Lumen Output types plus Tunable White version.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K.
• With Opal, Micro Prismatic Opal or Micro Prismatic Clear Optic-Diffuser.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White or Black powder coated, Optionally in Special RAL.
• L80 B50 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
