Alphabet FI ALPHA MOSS PENDANT

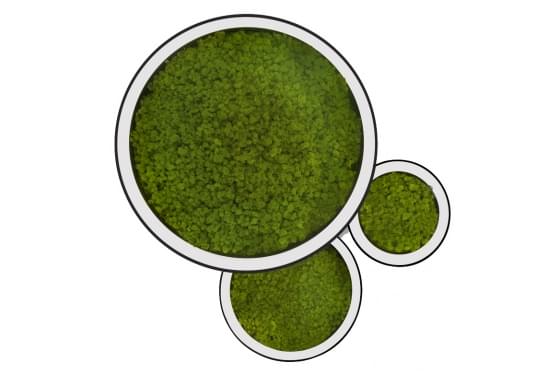

“FI ALPHA MOSS” Pendant is a LED circle luminaire, made of an curved extruded aluminum, powder-coated with fine matte finish and 100% real preserved moss.
Providing direct light emission through satined polycarbonate for an almost homogeneous emission of light or micro prismatic for UGR<19.
Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7.
Drivers On-Off or dimmable.
Features:
• Available in Diameter from 60cm to 180cm.
• Three different Lumen Output types plus Tunable White.
• CRi80, Optionally CRi90.
• CCT 3000K and 4000K, Optionally 2700K or Tunable White.
• Two different Optic-Diffuser (Opal or Micro Prismatic Clear).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative
Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
