Alphabet GAMMA 52 PENDANT (52mm)

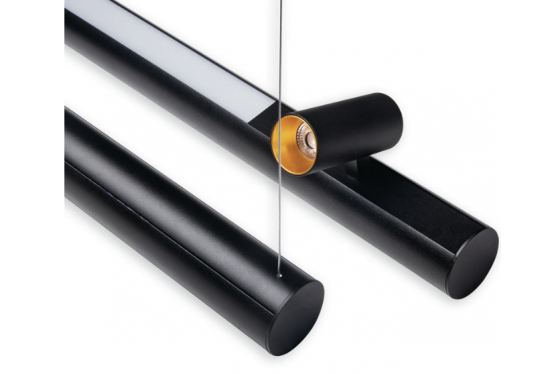

“GAMMA52” Pendant...is a LED profile, made of an extruded aluminum, powder-coated with fine matte finish. With dark cover and assembled spotlight. Designed for pendant installation.
Features:
• Available from 50cm up to 450cm
• Selection of different Spot Light (Giota34, Giota40 Zoom, Giota65 or Giota85).
• Available Individual Reflectors 15°, 24° and 36°.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally 2700K.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative
Black or Red Oxidation, Optionally in Special RAL.
• L90 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Tolerance 2 MacAdam.
