Alphabet KAPPA 52 PENDANT (52mm)

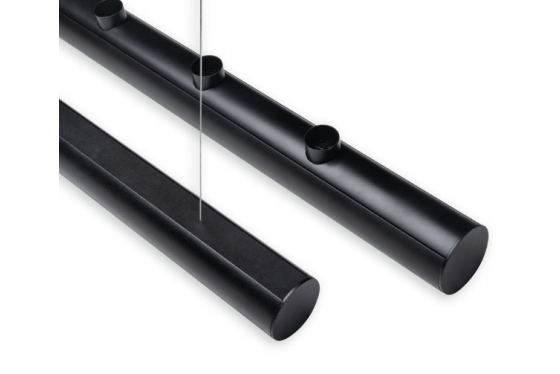

“KAPPA52” Pendant...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting, providing direct light emission through COB LED 9W, 1400Lm each with Individual Reflectors. With two versions dark light parts for reduced UGR. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3. Drivers On-Off or dimmable.
Features:
• Available from 20cm to 450cm.
• COB LED 9W, 1400Lm each with Individual Reflectors.
• Available Individual Reflectors 24° or 38°.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally 2700K or 6500K.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <16.
