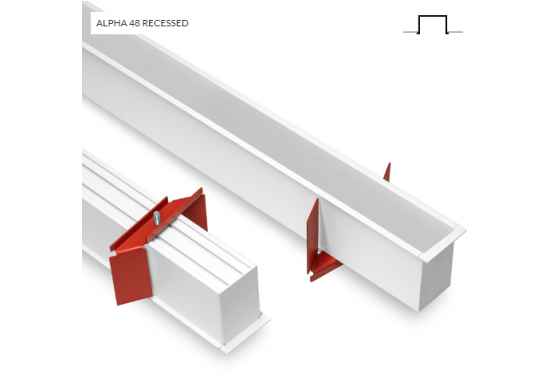

Alphabet ALPHA 48 RECESSED (48mm)
“ALPHA48” Recessed is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for ceiling recessed or trimless, providing direct light emission through a diffuser made either of satined polycarbonate for an almost homogeneous emission of light, or microprismatic clear for reduced UGR. Luminaire equipped with the latest generation of well-known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.
Features:
• Available from 58cm to 450cm.
• Three different Lumen Output types plus Tunable White.
• CRi80, Optionally CRi90.
• CCT 3000K or 4000K, Optionally 2700K or 6500K plus Tunable White.
• Three different Optics-Diffusers (Opal , Micro Prismatic Opal or Micro Prismatic Clear).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White or Black powder coated.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <19.
