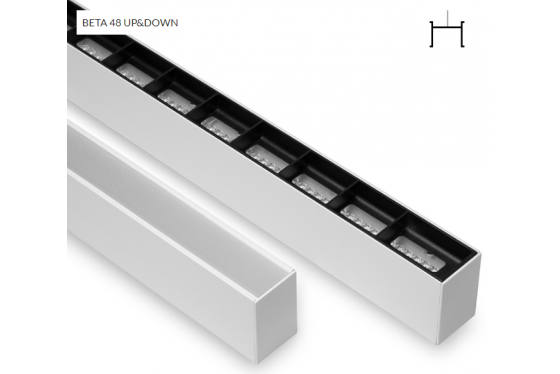

Alphabet BETA 48 UP&DOWN (48mm)
“BETA48” Up & Down...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting with uplight, providing direct light and indirect emission through linear lenses 30°, asymmetrical or double symmetrical angle beam. Linear louvers available for reduced UGR. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.
Features:
• Available from 58cm to 450cm.
• Three different Lumen Output types plus Tunable White.
• CRi80.
• CCT 3000K or 4000K, Optionally Tunable White.
• With Linear Lenses 30° or 60° Beam Angle and Asymmetric or Double Symmetric Optic-Diffuser.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Two different Cover Types (Flat Cover or Louver Oval).
• Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <15.
• U-LOR 50.
