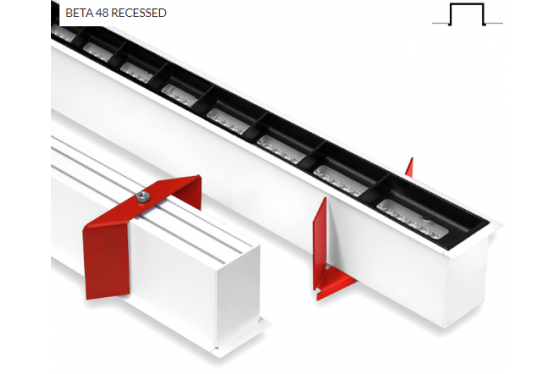

Alphabet BETA 48 RECESSED (48mm)
‘BETA48’ Recessed is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish.
Designed for recessed and trimless mounting, providing direct light emission through linear lenses 30°,
asymmetrical or double symmetrical angle beam. Linear louvers available for reduced UGR.
Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.
Features:
• Available from 58cm to 450cm.
• Two different Lumen Output types plus Tunable White.
• CRi80.
• CCT 3000K or 4000K, Optionally Tunable White.
• With Linear Lenses 30° or 60° Beam Angle and
Asymmetric or Double Symmetric Optic-Diffuser.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Two different Cover Types (Flat Cover or Louver Oval).
• Coming in White or Black powder coated.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <16.
