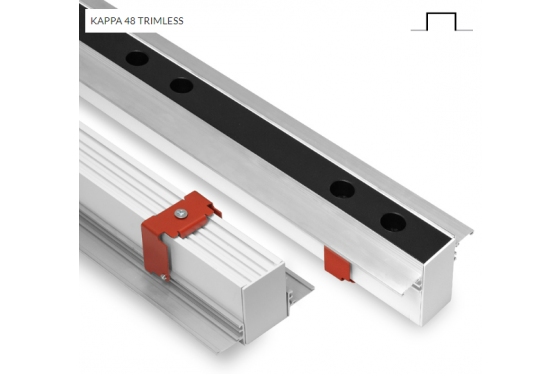

Alphabet KAPPA 48 TRIMLESS (48mm)
“KAPPA48” Trimless...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for recessed or
trimless mounting, providing direct light emission through COB LED 9W, 1400Lm each with Individual Reflectors. With two
versions dark light parts for reduced UGR.
Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3.
Drivers On-Off or dimmable.
Features:
• Available from 20cm to 450cm.
• COB LED 9W, 1400Lm each with Individual Reflectors
• CRi80, Optionally CRi 90.
• CCT 3000K or 4000K, Optionally 2700K or 6500K.
• Available Individual Reflectors 24° or 38°.
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Two different Cover Types (Deep Cover or Cylinder Cover).
• Coming in White or Black powder coated.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
• UGR <16.
