Alphabet ALPHA 34 UP&DOWN (34mm)

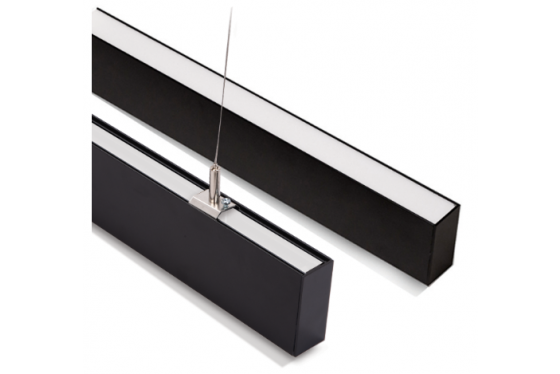

“ALPHA34” Up & Down is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting with uplight, providing direct and indirect light emission through a diffuser made either of satined polycarbonate for an almost homogeneous emission of light or microprismatic for reduced UGR<16. Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers ON-OFF or dimmable.
Features:
• Available from 58cm to 450cm
• Three different Lumen Output types (HE, HO or Tunable White).
• Two different CRi (80 or 90).
• Five different CCT (2700K, 3000K, 4000K, 6500K or Tunable White).
• On-Off or Dimmable version (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black, Grey or your Special RAL powder coated.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz<3
• Color Consistency <3SDCM.
• U-LOR 50 .
