Downloads : technical modifications reserved
alpha_pendant_profile_instructions_2 (pdf) |
wiring_alphabet_35 (pdf) |

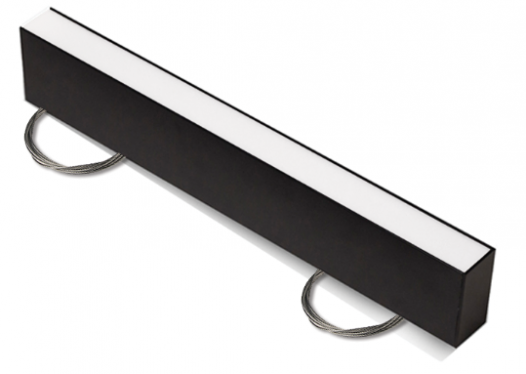

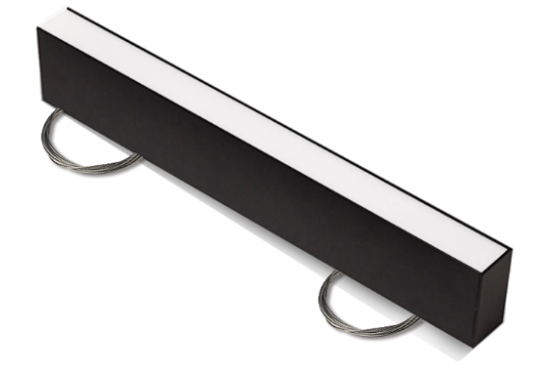

Alphabet ALPHA 34 PENDANT (34mm)
“ALPHA34” Pendant...is a LED profile luminaire, made of an extruded aluminum, powder-coated with fine matte finish. Designed for ceiling or pendant mounting, providing direct light emission through a diffuser made either of satined polycarbonate for an almost homogeneous emission of light or microprismatic for reduced UGR<19.
Luminaire equipped with the latest generation of well known LED boards, with small color tolerance MacAdam 3, according to Zhaga book 7. Drivers On-Off or dimmable.
Features:
• Available from 58cm to 450cm.
• Three different Lumen Output types (HE, HO or Tunable White).
• Two different CRi (80 or 90).
• Five different CCT (2700K, 3000K, 4000K, 6500K or Tunable White).
• Three Optic-Diffuser (Opal, Micro Prismatic Opal or Black Diffuser).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated, Optionally in Special RAL.
• L80 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
• Color Consistency <3SDCM.
