Alphabet GAMMA 34 UP&DOWN (34mm)

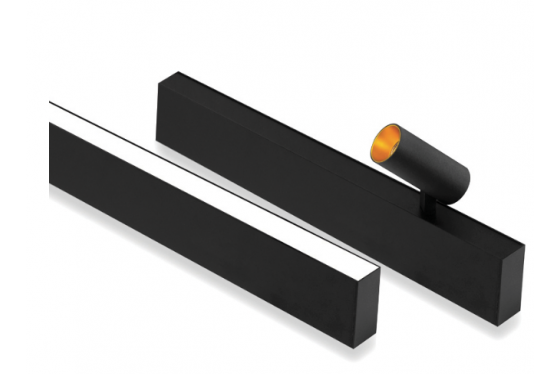

“GAMMA34” Up & Down is a LED profile, made of an extruded aluminum, powder-coated with fine matte finish. Designed for pendant mounting with uplight, providing direct and indirect light emission.With dark cover and assembled spotlight.

Features:
• Available from 30cm up to 450cm.
• Four different Spot Lights (Giota34, Giota40 Zoom, Giota65 or Giota85).
• Two different Lumen Output types (HE or HO).
• Two different CRi (80 or 90).
• Four different CCT (2700K, 3000K, 4000K or 6500K).
• Three different Optics-Diffusers (15° , 24° , 36°).
• On-Off or Dimmable Drivers (Dali, Push Button, 1-10V or Bluetooth).
• Coming in White, Black or Grey powder coated and in Special Decorative Black or Red Oxidation, Optionally in Special RAL.
• L90 B10 @50.000h (Ta 24°).
• Flicker @100Hz <3.
