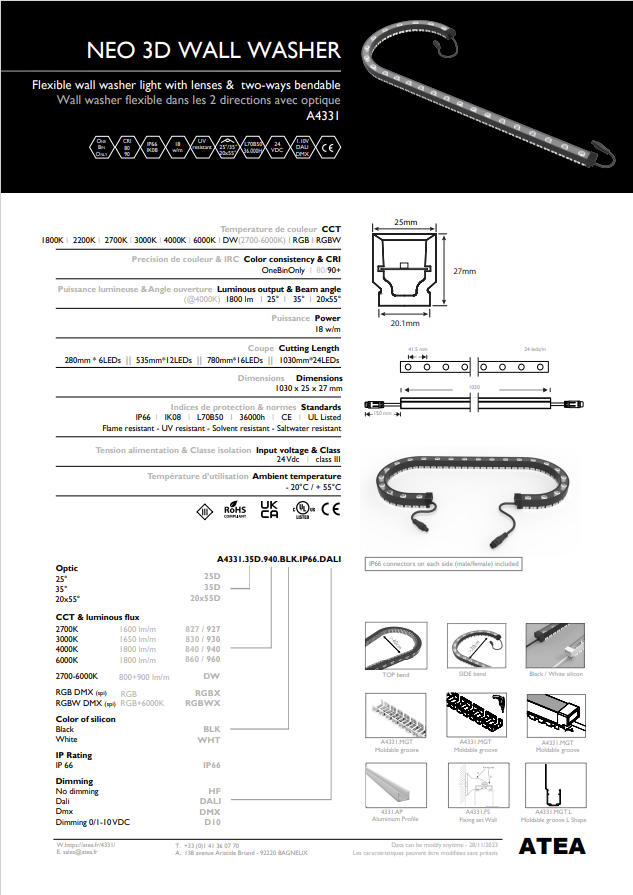

datasheetneo3dwallwasher (pdf)

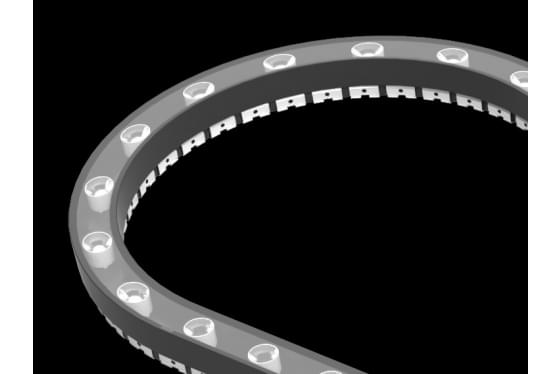

ATEA NEO 3D WALL WASHER

CCT:  1800K I 2200K I 2700K I 3000K I 4000K I 6000K I DW(2700-6000K) I RGB I RGBW

CRI: 80 / 90+

Luminous output & Beam angle: 1800 lm / 25° / 35° / 20x55°

Cutting Length 280mm * 6LEDs || 535mm*12LEDs || 780mm*16LEDs || 1030mm*24LEDs

 (White / Dynamic White) (RGBX / RGBWX)

Dimensions: 1030 x 25 x 27 mm

Standards: IP66 I IK08 I L70B50 I 36000h I CE I UL

Resistant: Flame resistant - UV resistant - Solvent resistant - Saltwater resistant

Ambient temperature - 20°C / + 55°C

See specification for more information or click here
