Downloads : technical modifications reserved

occularroundminitrimplugplay-standarddatasheet (pdf)

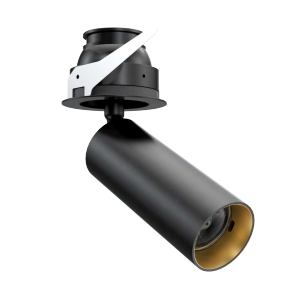

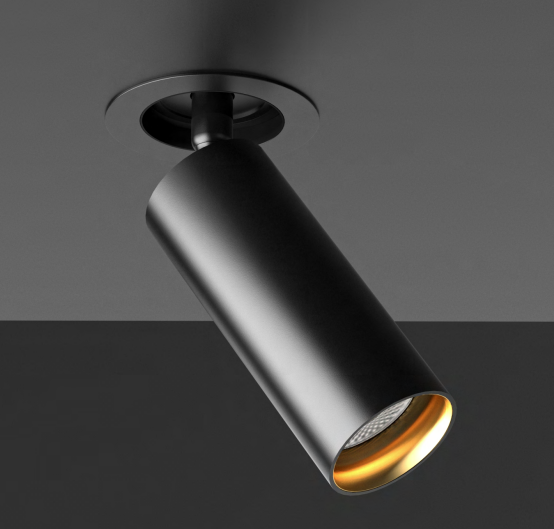

Phos occular round mini trim plug & play - standard

eaturing the ø62mm Mini Trim bezel from our Eyeconic range and an ingenious plug & play connector to provide a high
degree of modularity between ranges.

  • Spotlight
  • Adjustable
  • Interior
  • LED
  • IP54
  • Available in all Phos finishes
  • Interchangeable optics (pre & post install)


Phos Standards

  • 60min fire-certified
  • Acoustic-rated
  • UK designed, manufactured and assembled
  • 5 year warranty

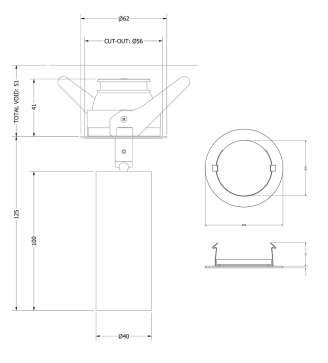

Physical Properties

  • Diameter Ø62mm
  • Height 125mm
  • Cut-out Ø56mm
  • Tilt Max 90°
  • Rotation 360°

See specification for more information or click here
