Downloads : technical modifications reserved

eclipsesoft-standarddatasheet (pdf)

Phos eclipse soft - standard

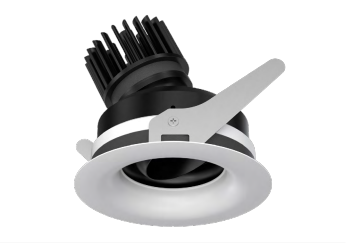

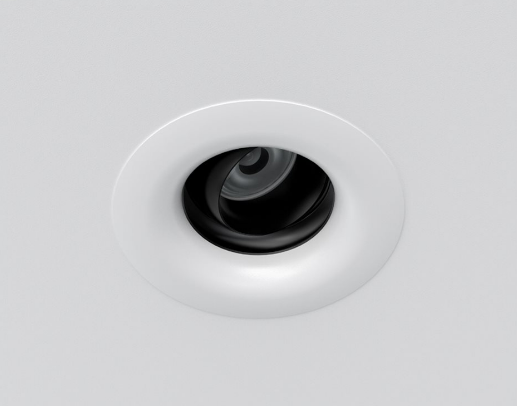

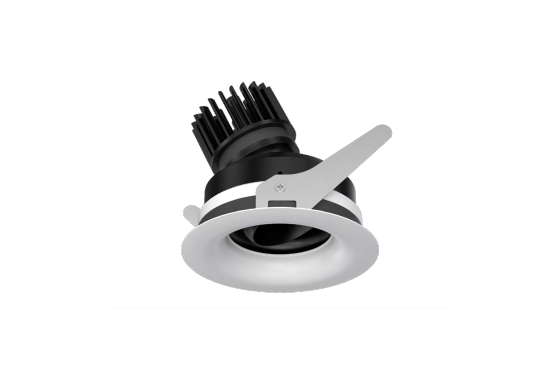

The Eclipse Soft is a recessed, tilt behind, adjustable downlight with a beautifully sculpted, trumpeted-shaped bezel.

Product Features

  • Downlight
  • Adjustable
  • Interior
  • LED
  • IP65
  • Available in all Phos finishes
  • Interchangable optics (pre & post install)

Phos Standards

  • 60min fire-certified
  • Acoustic-rated
  • UK designed, manufactured and assembled
  • 5 year warranty

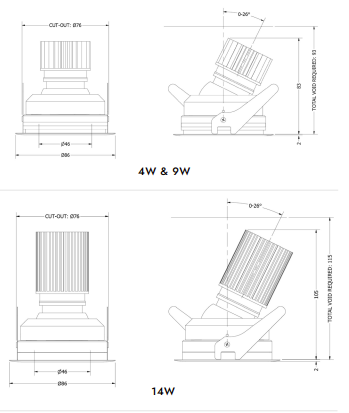

Physical Properties

  • Diameter ø86mm
  • Height 85mm (4W/9W)
  • Height 107mm (14W)
  • Cut-out Ø76mm
  • Tilt Max 26°

See specification for more information or click here
