Downloads : technical modifications reserved

c1-mini-c_20230704_e (pdf)

Corporate friends C1-mini-C

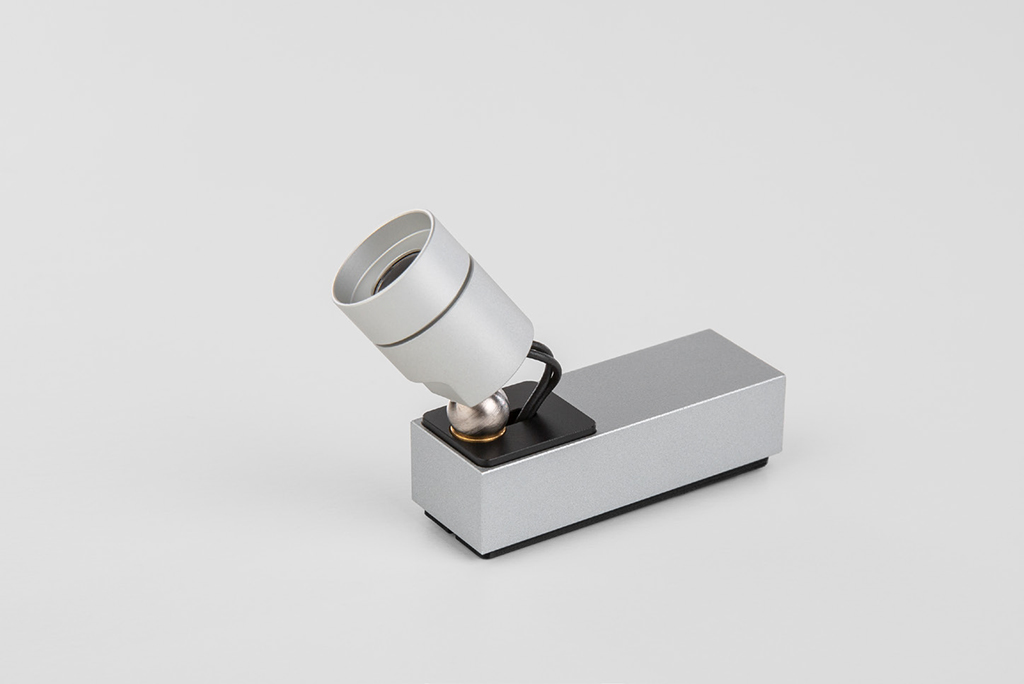

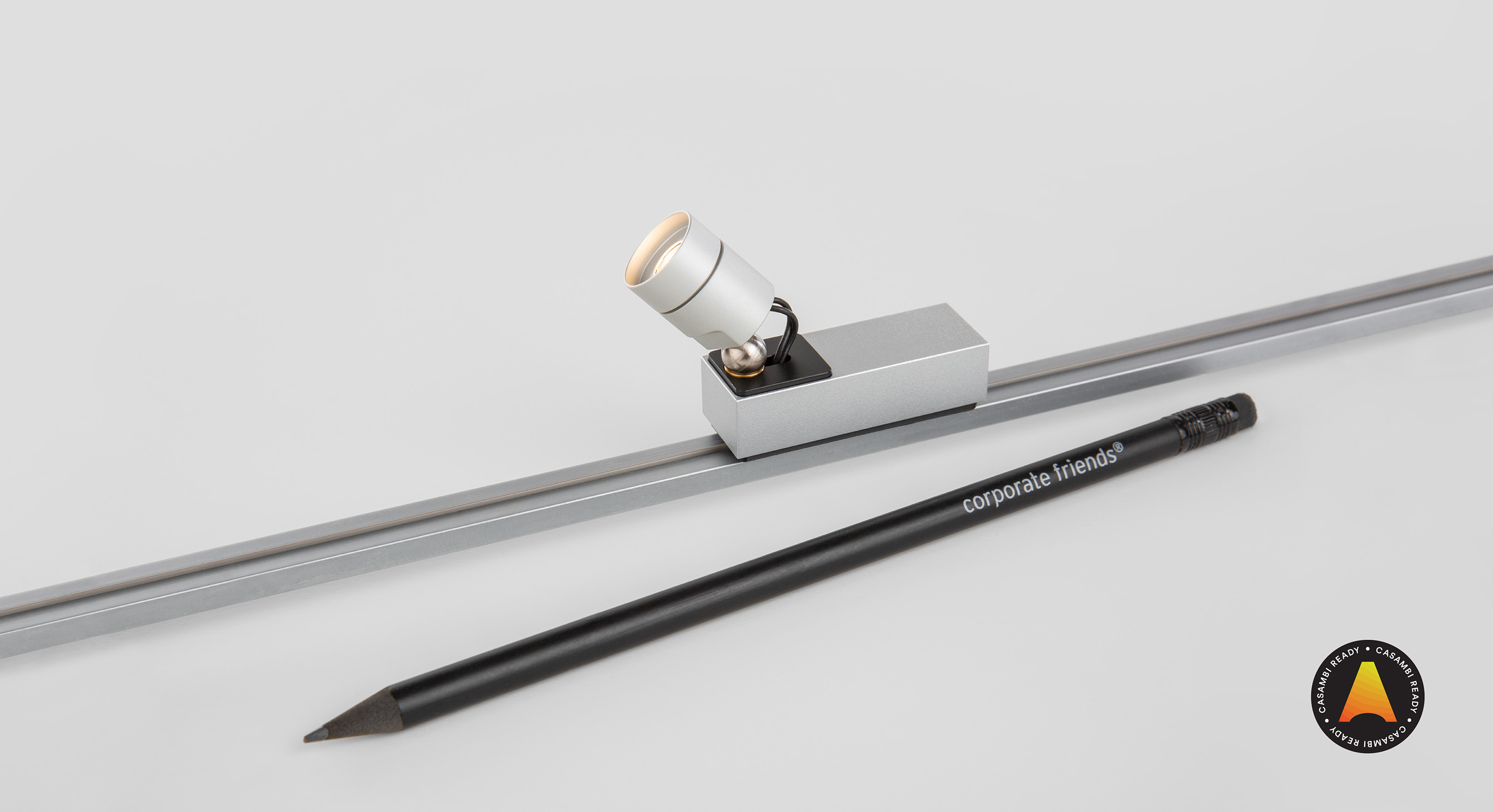

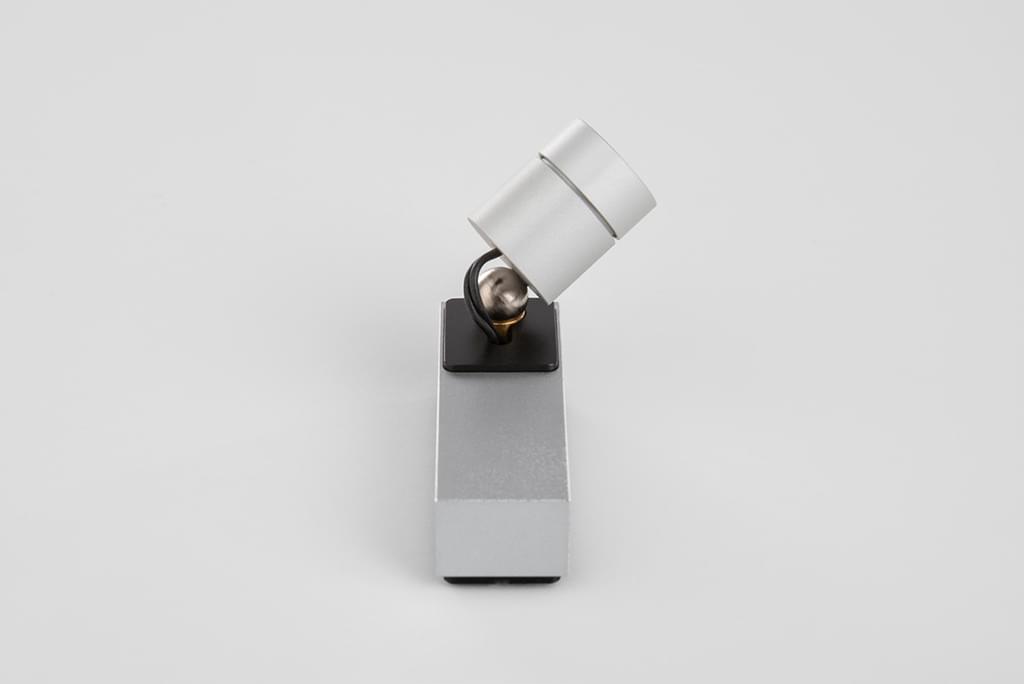

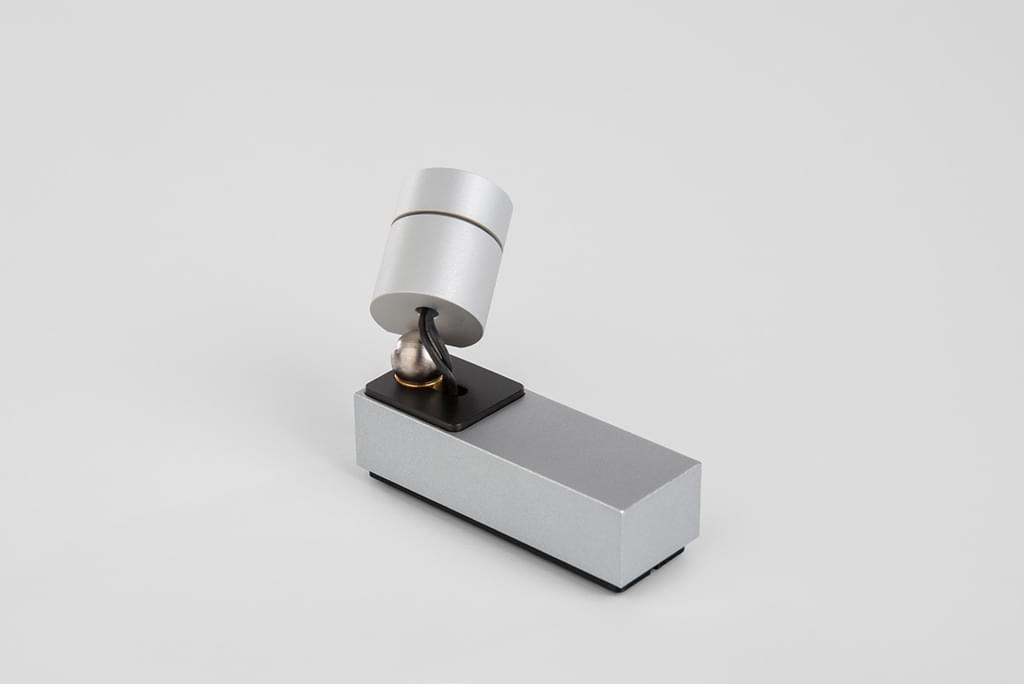

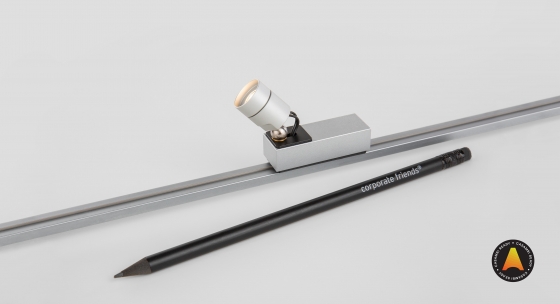

LED spotlight for installation on magnetic track, 360° rotatable, 90° swivelling

  • housing colour: aluminium anodised black, silver, gold  (other surface finishing on request)
  • optics: 8°, 15°, 18°, 26°, 30°, 45°, 80°, 47°+ 25°, 40°+ 10°
  • light colour (+/- 100K): ~2,700 K, ~3,000 K, ~3,500 K, ~4,000 K, ~5,700 K
  • high power LED, high CRI: DIN EN 55015:2013, lifetime 50,000 hours | basis of lifetime L80B10
  • protection class: IP 20, protection class III, CE, ETSI EN 300 328 V2.2.2
  • max. luminous flux (~3,000 K | standard lens 30°):  ~160 lm at ~2.5 W (64 lm/W)
  • power input: 9 - 24V DC
  • dimming: via Casambi-App
  • accessory: magnetic track
  • optional accessory: magnetic track holders,
    honeycomb grid, anti-glare tube, inclined tube,
    snoot (8°), light diffusion foil, barn door,
    zoom optic (9° - 33°)

See specification for more information or click here
