Encapsulite MT70 LED IP67

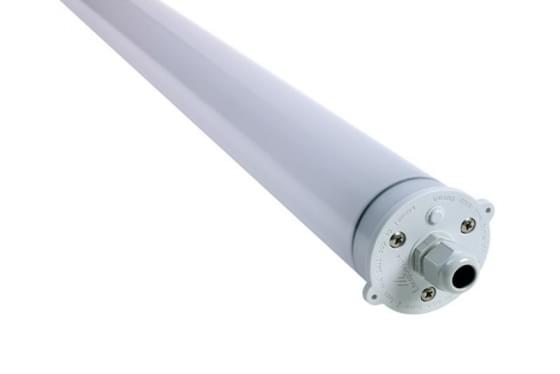

The MT70 LED IP67 is a clean-cut and classic LED fitting available with either satin or clear diffusers, which can be used internally and externally. The cylindrical tube offers a 180° distribution of light through its polycarbonate diffuser.

The MT70 LED IP67 is an incredibly versatile linear lighting solution that makes use of efficient LED technology to offer various options to meet the needs of your space.

  • Suitable for damp/wet areas. Not intended for permanent submersion
  • Switched, DALI and 1-10V dimming options are available
  • Satin or clear diffusers available
  • Suspended horizontally or surface mounted


Fittings are supplied with clear mounting brackets, suspension kits and metal mounting brackets need to be purchased separately.

Technical Info

  • Light Source information: LED/Electronic Driver
  • Dimming: 1-10V or DALI
  • Installation: Horizontal, angled suspension or surface mounted
  • Optics: Satin or clear polycarbonate diffuser
  • Source Info: LED boards
  • Lumens: 1100lm – 10515lm
  • Colour Temp: 3000K, 4000K
  • Lifetime: Up to 50,000hr
  • Voltage: 230V, 50-60Hz
  • Safety Class: I
  • IP Rating: IP67
