Downloads : technical modifications reserved

mt70-led-ac2 (pdf)

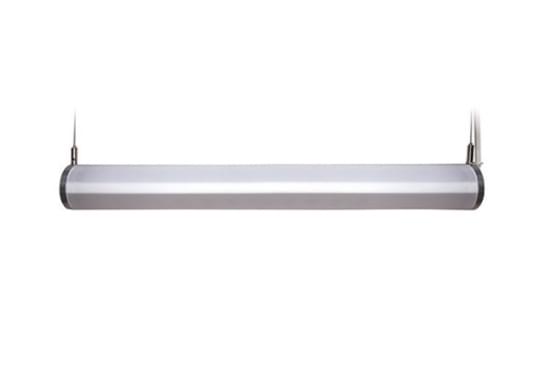

Encapsulite MT70 LED AC2

The MT70 LED AC2 is a clean-cut designed LED fitting with satin or clear diffusers that can enhance any modern interior space. This versatile linear lighting solution has many options available to meet your lighting requirements.

  • End caps are aluminium
  • Suspended horizontally or surface mounted
  • 180° distribution of light through its polycarbonate diffuser
  • Suitable for almost any interior application
  • Switched, DALI and 1-10V dimming options are available

Fittings are supplied with clear mounting brackets, suspension kits and metal mounting brackets need to be purchased separately.

Technical Info

  • Light Source Information: LED/Electronic Driver
  • Dimming: 1-10V or DALI
  • Installation: Horizontal, angled suspension or surface mounted
  • Optics: Satin or clear polycarbonate diffuser
  • Source Info: LED boards
  • Lumens: 1100lm – 10215lm
  • Colour Temp: 3000K, 4000K
  • Lifetime: Up to 50,000hr
  • Voltage: 230V, 50-60Hz
  • Safety Class: I
  • IP Rating: IP20

Click here for more information
