Downloads : technical modifications reserved

mt70-led-ac (pdf)

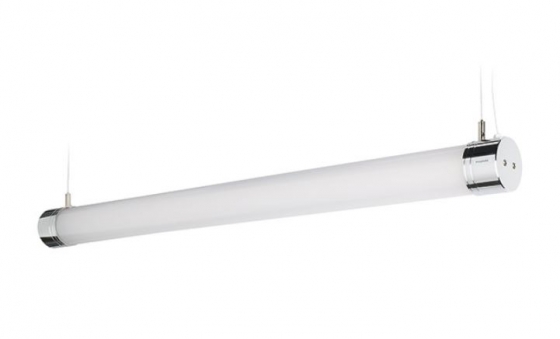

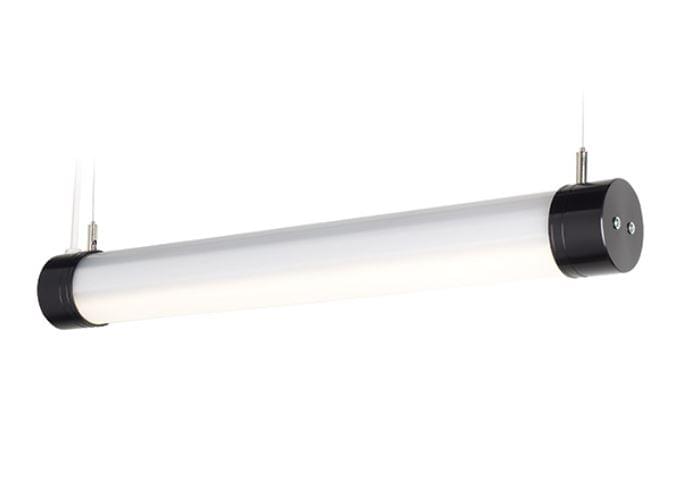

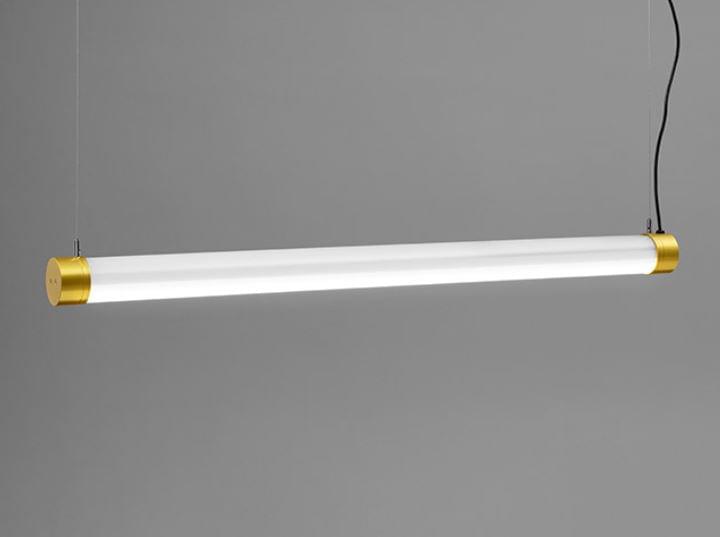

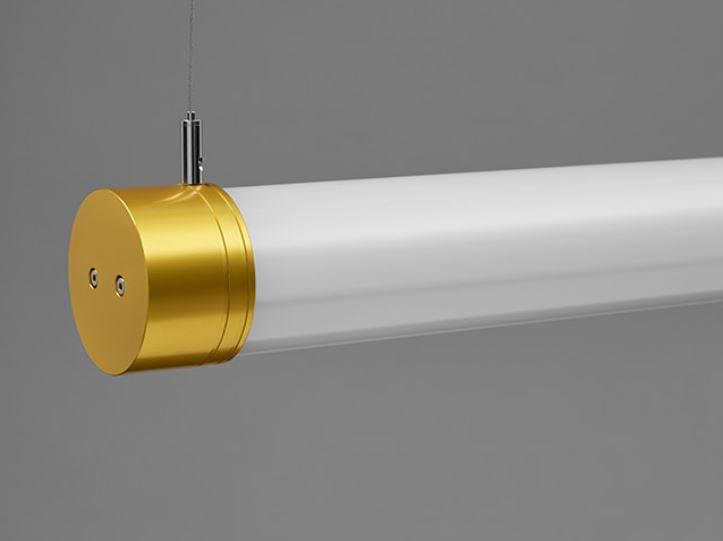

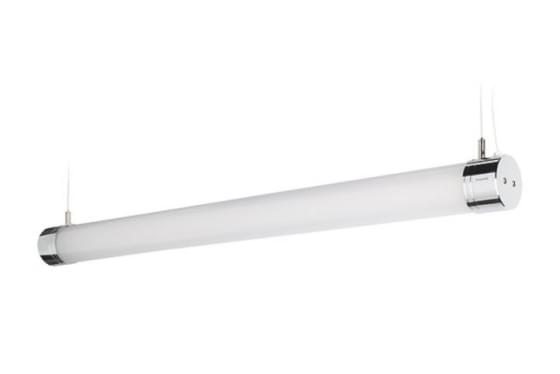

Encapsulite MT70 LED AC

The MT70 LED AC is a classic designed LED fitting with either satin or clear polycarbonate diffusers to enhance any modern space. The fitting can be suspended horizontally or surface mounted and offers a 180° distribution of light.

The MT70 LED AC uses efficient LED technology and optional DALI dimming for a controllable level of light output.

  • Suitable for almost any interior application
  • LED light source
  • DALI dimming option available


Fittings are supplied with clear mounting brackets, suspension kits and metal mounting brackets need to be purchased separately.


Technical Info

  • Light Source Information: LED/Electronic Driver
  • Dimming: 1-10V or DALI
  • Optics: Satin or clear polycarbonate diffuser
  • Source Info: LED boards
  • Lumens: 1100lm – 10515lm
  • Colour Temp: 3000K, 4000K
  • Lifetime: Up to 50,000hr
  • Voltage: 230V, 50-60Hz
  • Safety Class: I
  • IP Rating: IP20


Click here for more information.
