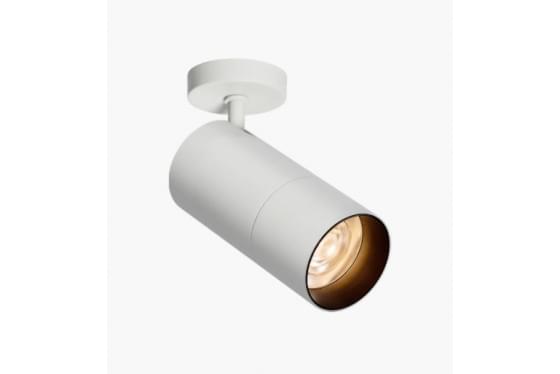

Lucent TubeLED Mini Ambiance WarmDim MonoPoint Surface Mount
TubeLED Mini Ambiance WarmDim with dim to warm options of 3000K or 2700K to 2200K .
60mm diameter MonoPoint spotlight with 3 different mounting options - Surface MonoPoint, Recessed MonoPoint and Trimless MonoPoint.
Available in White and Black finish. Supplied with anti-glare black baffle as standard - other metalised baffle finishes are available.
The TubeLED Mini utilises the LED50 ONE family of modules and requires a remote driver installation in Phase, 0-10V and DALI dimming.
Aperture: Ø60mm
Length: 133mm
Ingress Protection: IP20
Remote Dimming options: Phase/1-10V/DALI
Tilt: 180°
Rotation: 355°
Ceiling Thickness: 25mm MAX
See specification for more information or click here
