Downloads : technical modifications reserved

r1-t_20221117_e (pdf)

Corporate friends R1

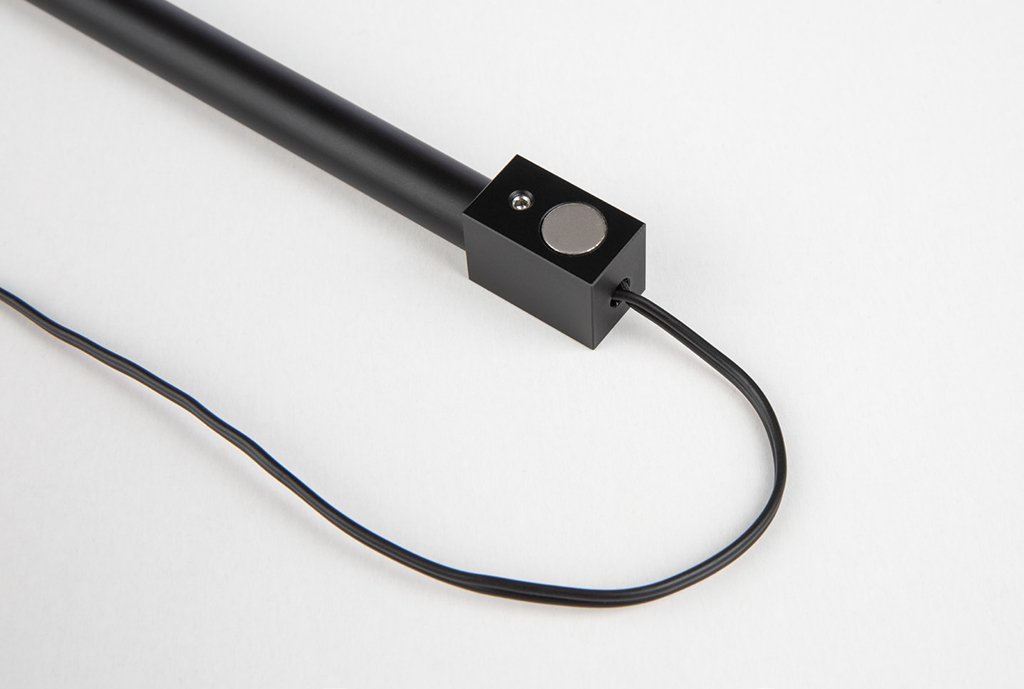

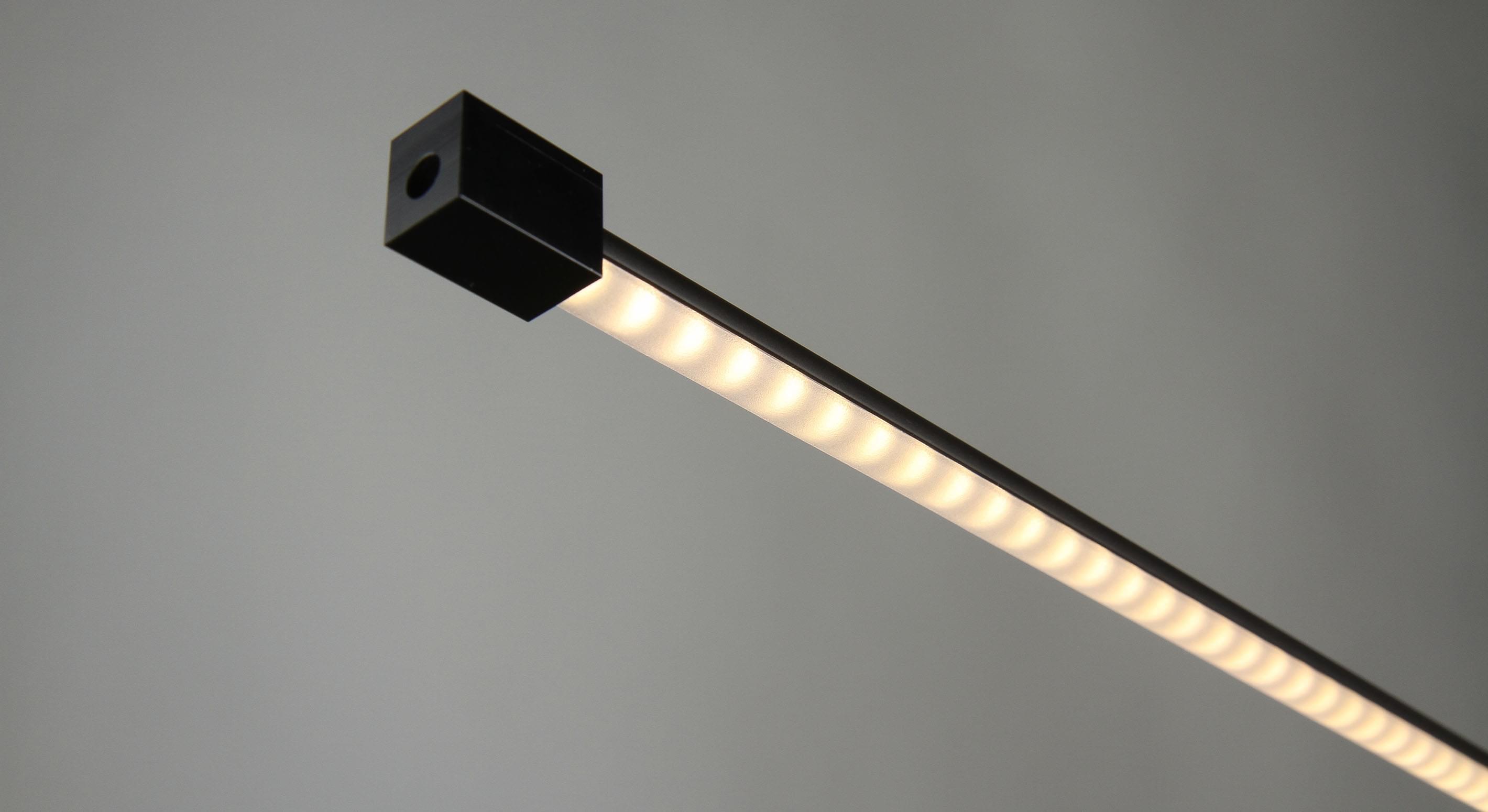

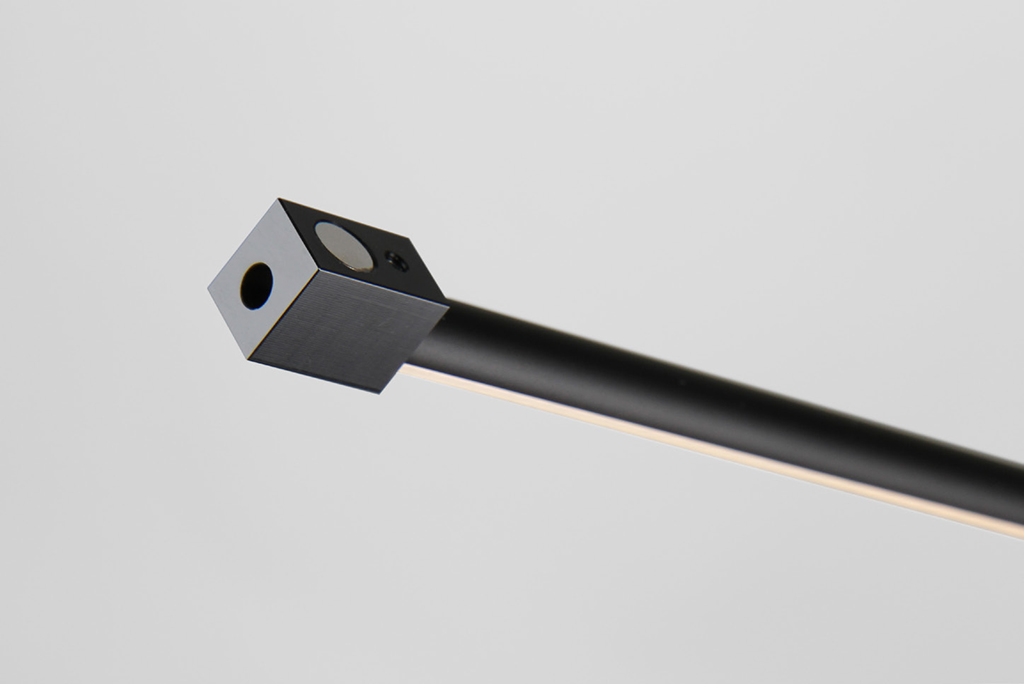

LED light bar, profile Ø 10mm, 360° rotatable

  • housing colour: aluminium anodised black, silver, gold
  • LED-type: mid power LED, high CRI
  • light colour (+/- 100K): 2700K, 3000K, 4000K
  • max. luminous flux: 900lm/m
  • max. power consumption: 15W/m
  • LED driver: external
  • power input: 24V DC constant voltage
  • dimming: external
  • protection class: IP 20
  • optic: linear optics with ~50° or ~70° beam angle
    240 LEDs/m (smallest separable unit 25mm)
  • additional accessory:

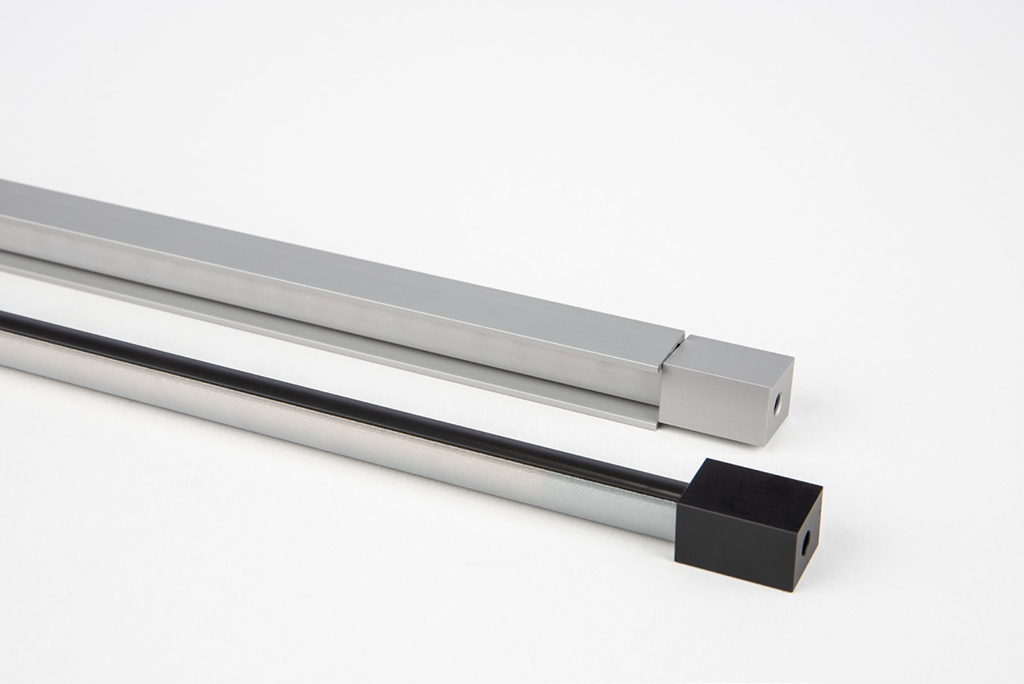

    anti-glare profile 13.6 x 13.6mm, anodised aluminium
    or powder-coated according to RAL


See specification for more information or click here
