c2-sts-13_20230704_e (pdf)

Corporate friends C2-STS

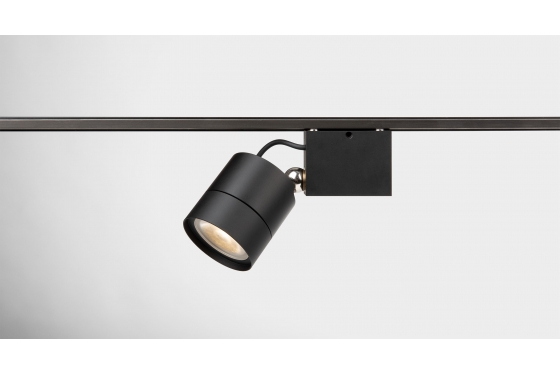

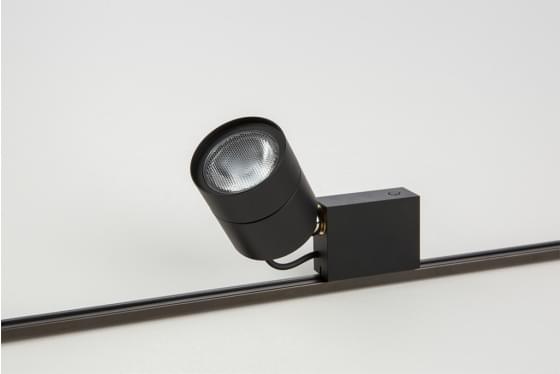

LED spotlight for installation on magnetic track
180° rotatable, 90° swivelled

  • housing colour: aluminium anodised black, silver, gold
    (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 260lm (single lens), 310lm (triple lens)
  • max. power consumption: 4.5W
  • LED driver: external
  • power input: constant current up to max. 1050mA
  • dimming: external
  • protection class: IP 20
  • accessory: magnetic track (11 x 7 mm), holders
  • additional accessory:
    - lenses (single lens): 14°, 25°, 60°, 40+15°
    - lenses (triple lens): 18°, 25°, 32°, 67°
    - honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn door


See specifications for more information or click here
