Corporate friends C1-DL

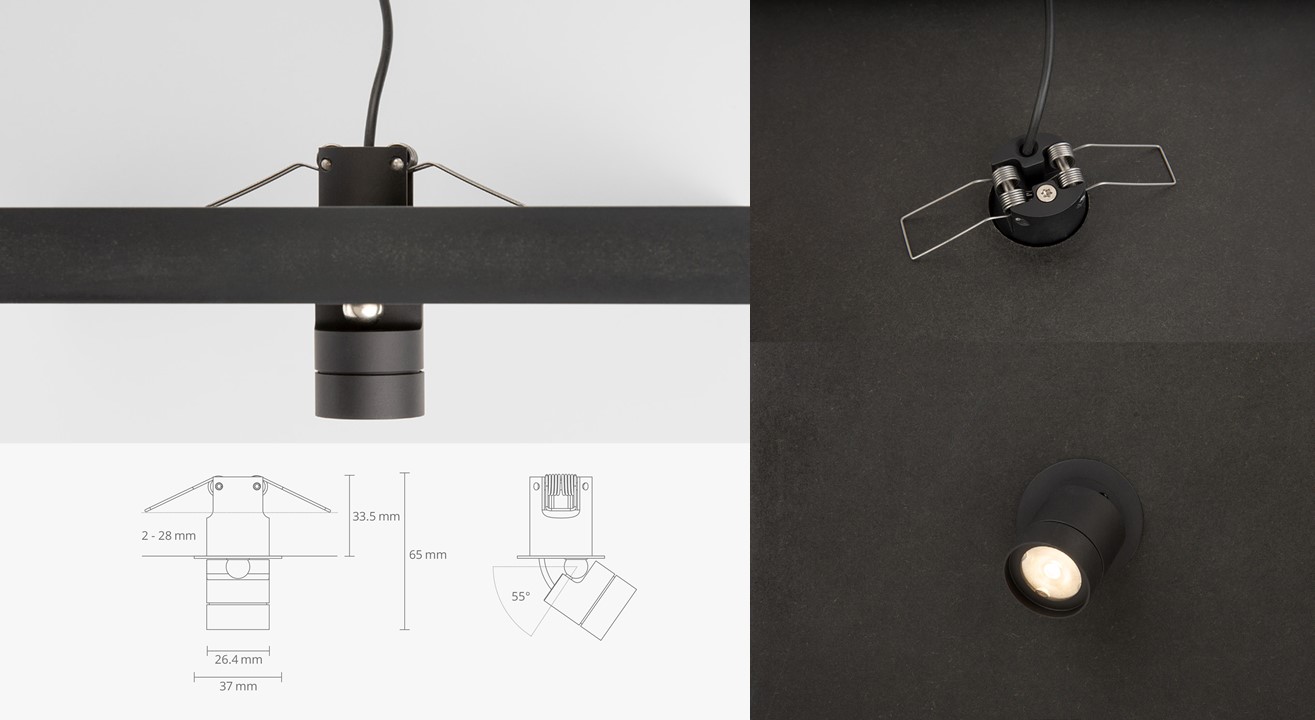

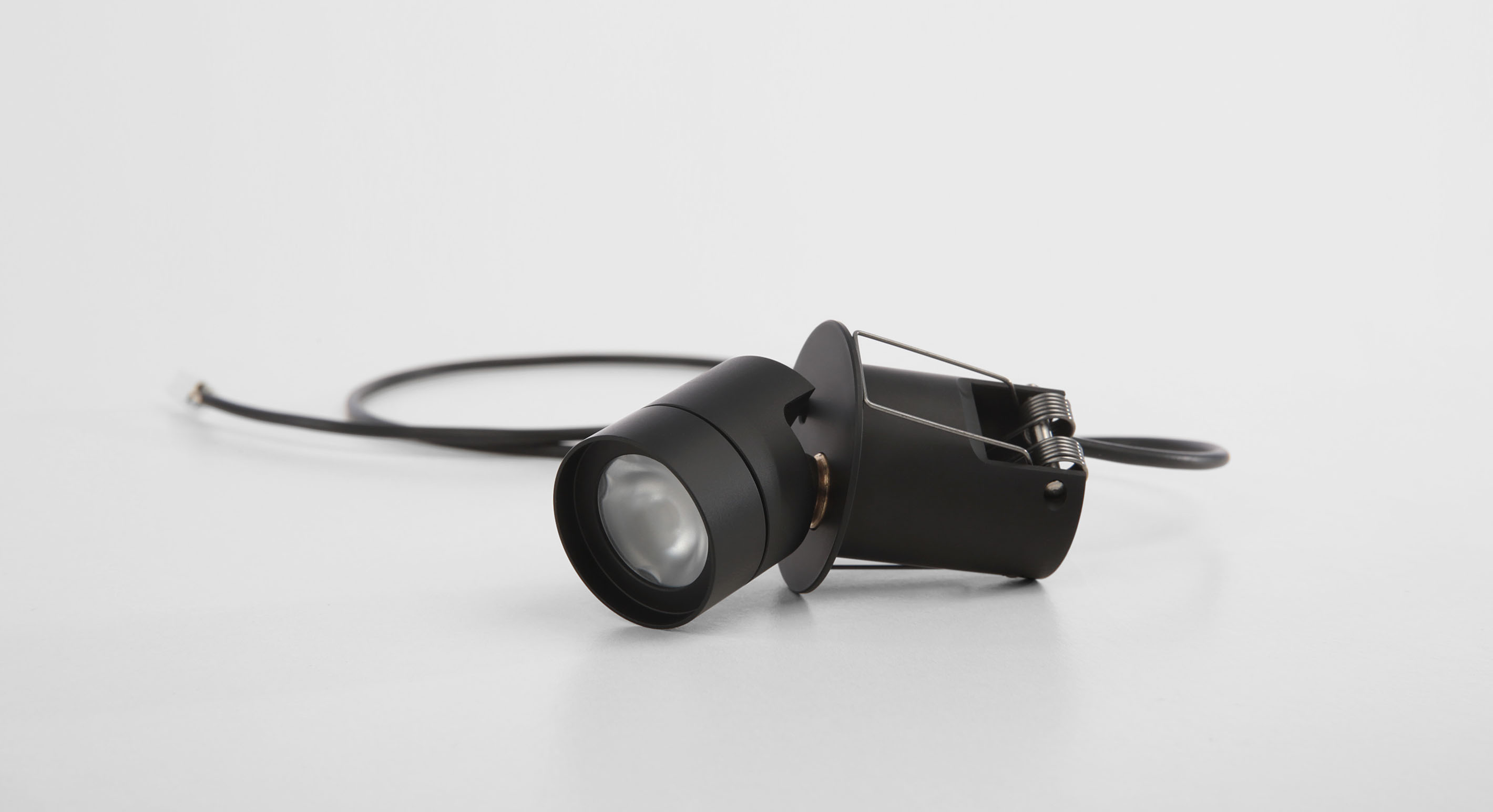

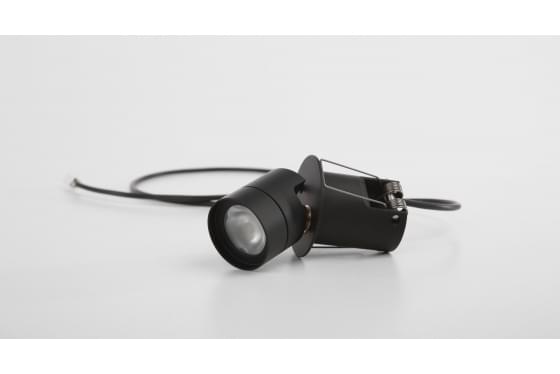

LED spotlight for installation in display case ceilings

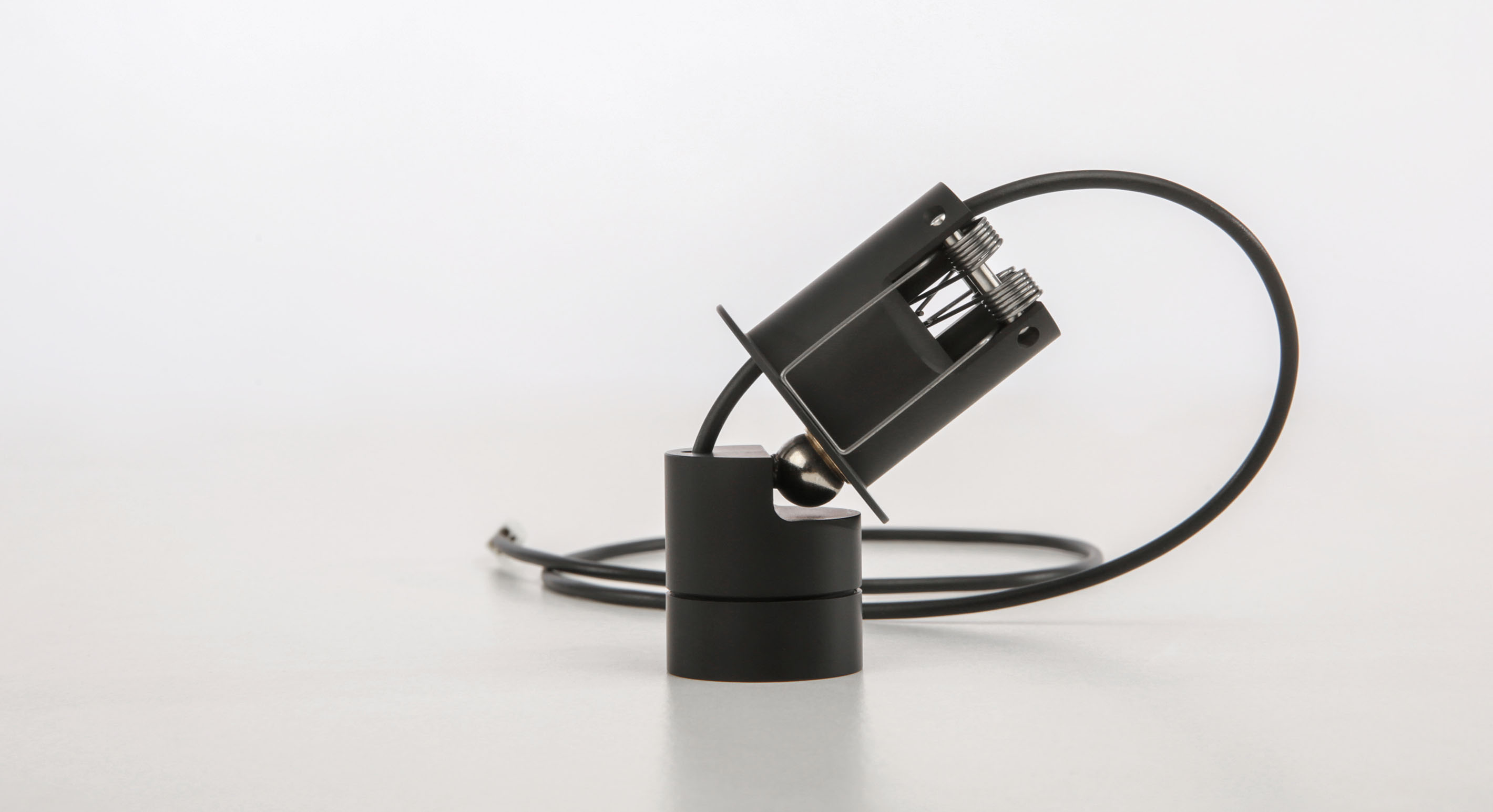

360° rotatable, 55° swivelled

  • housing colour: aluminium anodised black, silver, gold
    (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 190lm
  • max. power consumption: 2.8W
  • LED driver: external
  • power input: constant current up to max. 700mA
  • dimming: external
  • protection class: IP 20
  • additional accessory:
    - lenses: 10°, 15°, 20°, 35°, 45° and 46°+ 10°
    - honeycomb grid, anti-glare tube, inclined tube,  light diffusion foil, barn door
    - zoom optic

Click here for more information.
