Downloads : technical modifications reserved

c1-mini-s_20230704_e (pdf)

Corporate friends C1-mini-S

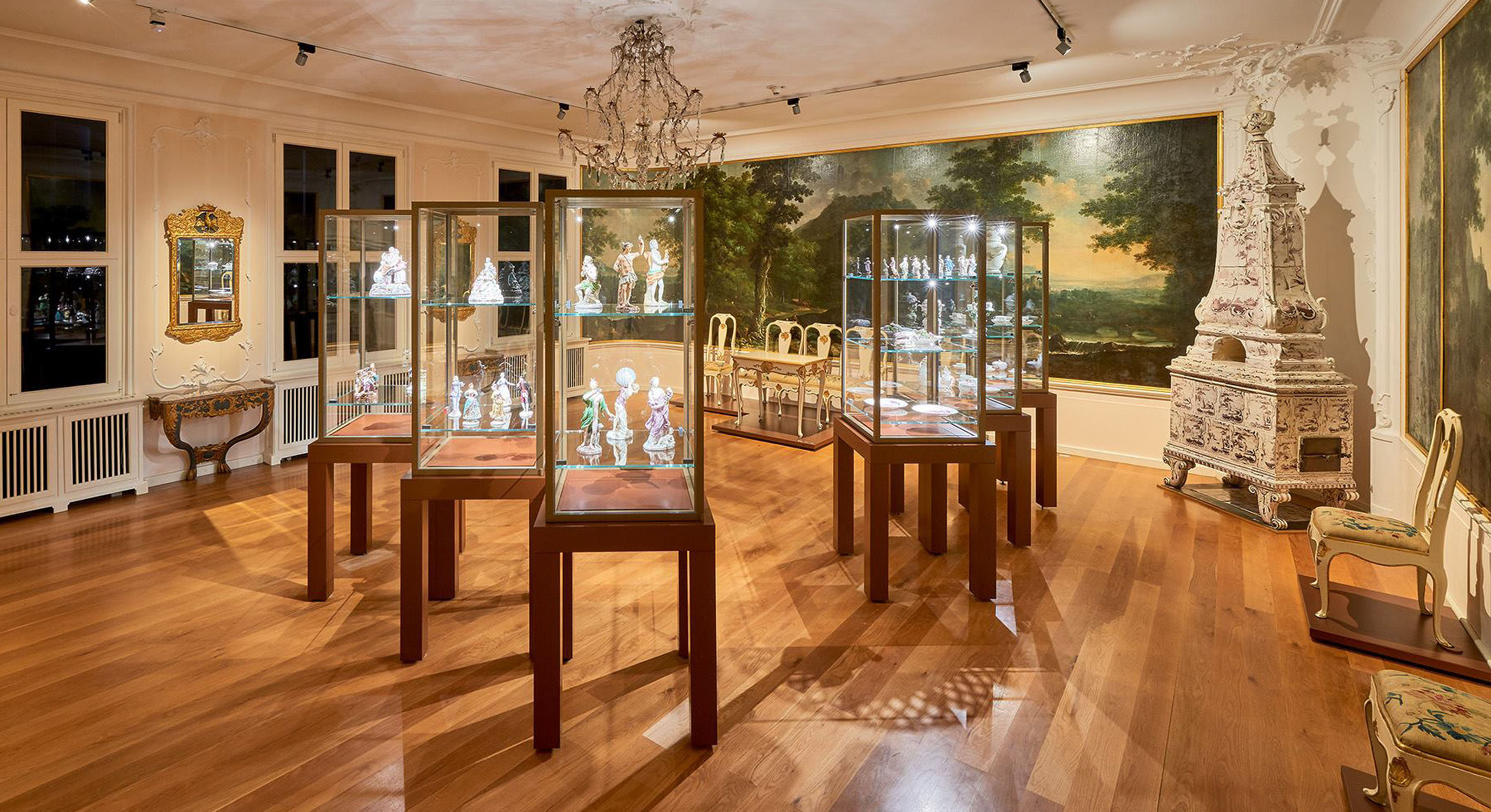

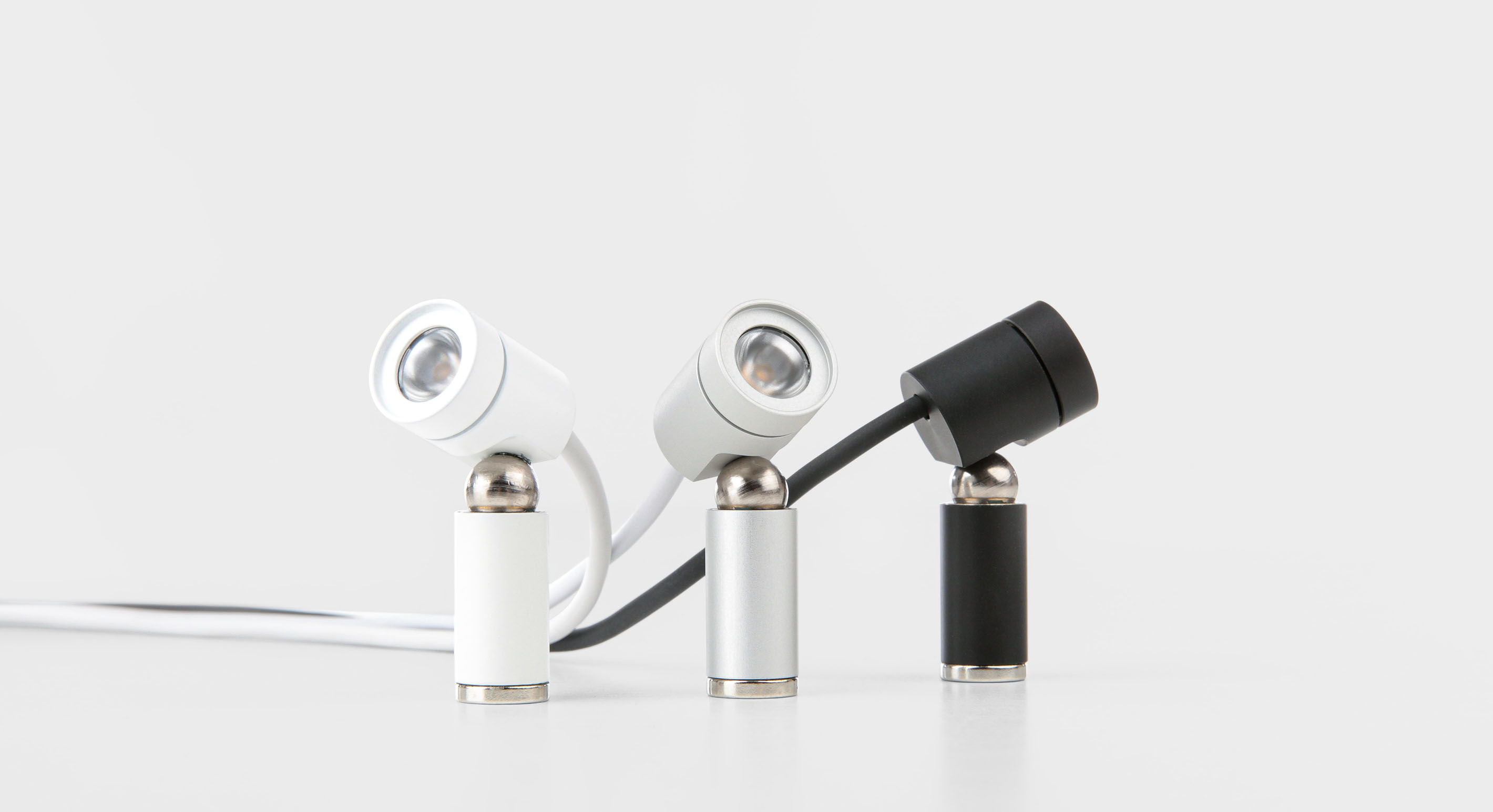

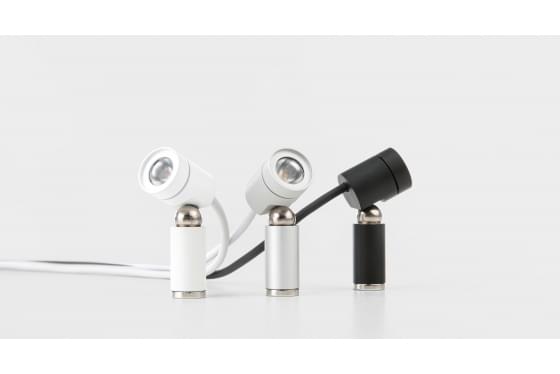

LED spotlight for installation in display cases

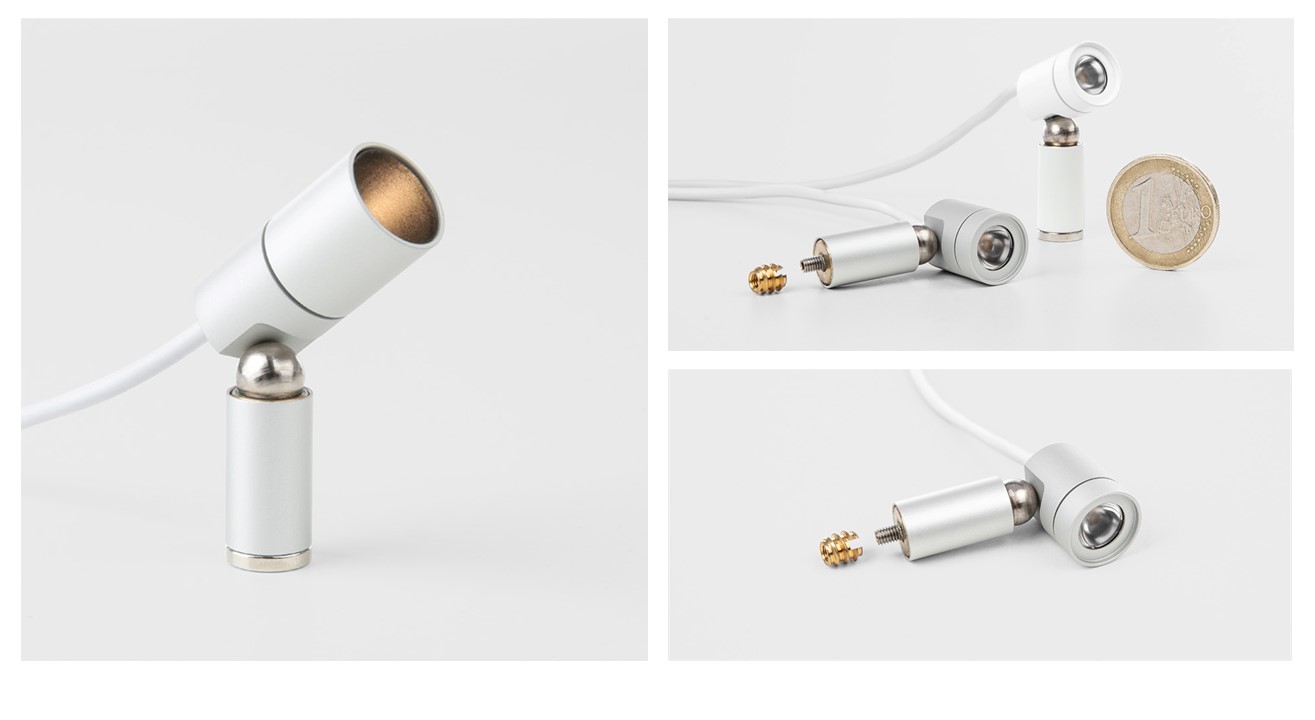

360° rotatable, 135° swivelled

  • housing colour: aluminium anodised black, silver, gold (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 130lm
  • max. power consumption: 1.8W
  • LED driver: external
  • power input: constant current up to max. 600mA
  • dimming: external
  • protection class: IP 20
  • additional accessory:
    - lenses: 15°, 18°, 26°, 30°, 45°, 80° und 47°+ 25°, 40°+ 10°
    - honeycomb grid, anti-glare tube, inclined tube,  light diffusion foil, barn door


See specifications for more information or click here
