Corporate friends C1-mini-E

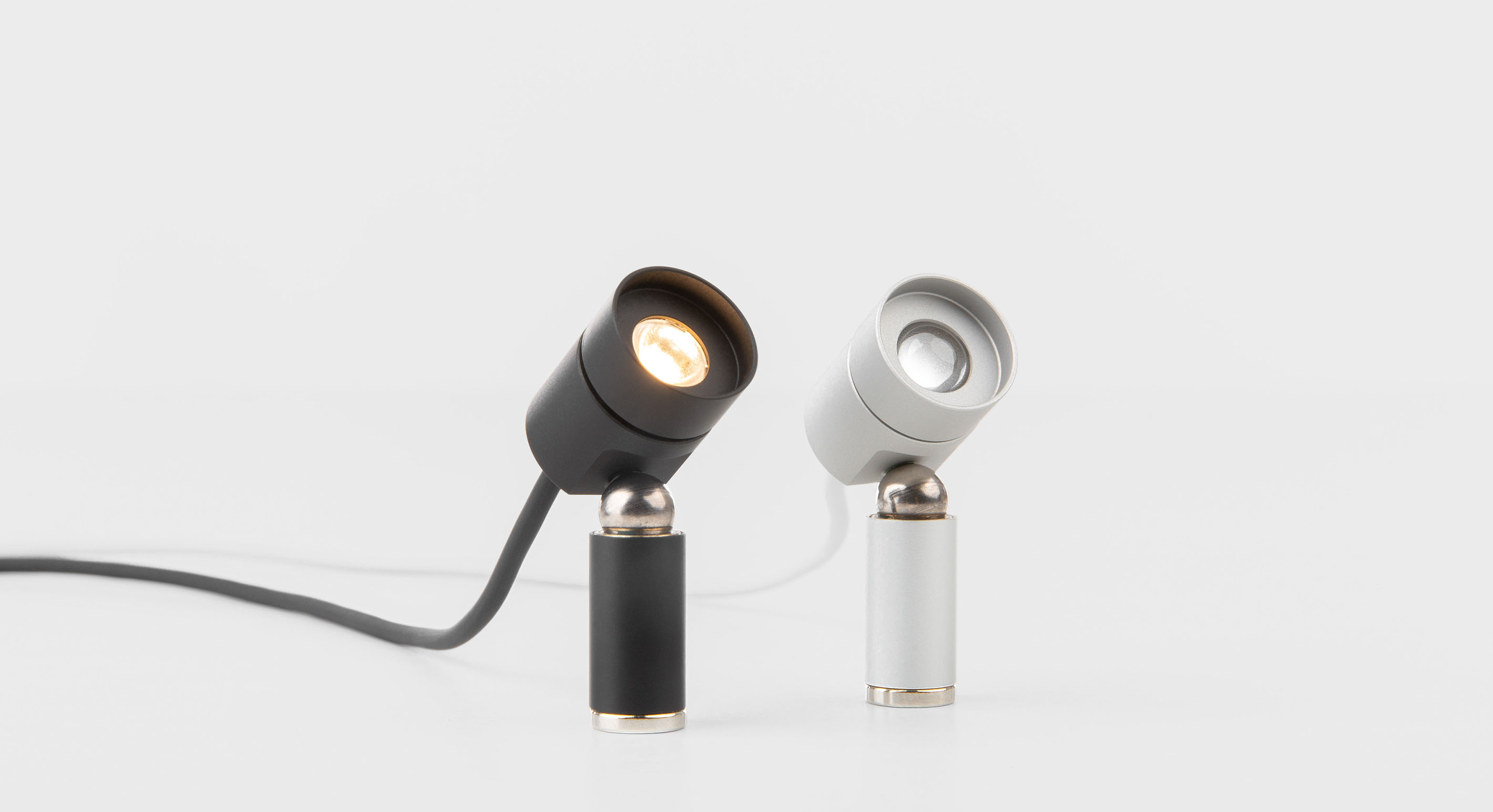

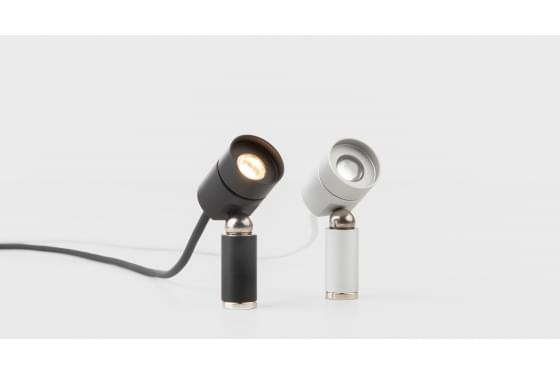

LED spotlight for installation in display cases
360° rotatable, 125° swivelled

  • housing colour: aluminium anodised black, silver, gold (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 140lm
  • max. power consumption: 2.2W
  • power input: constant current up to max. 650 mA
  • dimming: external
  • protection class: IP 20
  • additional accessory:
    - lenses: 15°, 18°, 26°, 30°, 45°, 80° und 47°+ 25°, 40°+ 10°
    - honeycomb grid, anti-glare tube, inclined tube, snoot, light diffusion foil, barn door


See specifications for more information or click here
