Downloads : technical modifications reserved

Specification C1-mini-DL (pdf)

Corporate friends C1-mini-DL

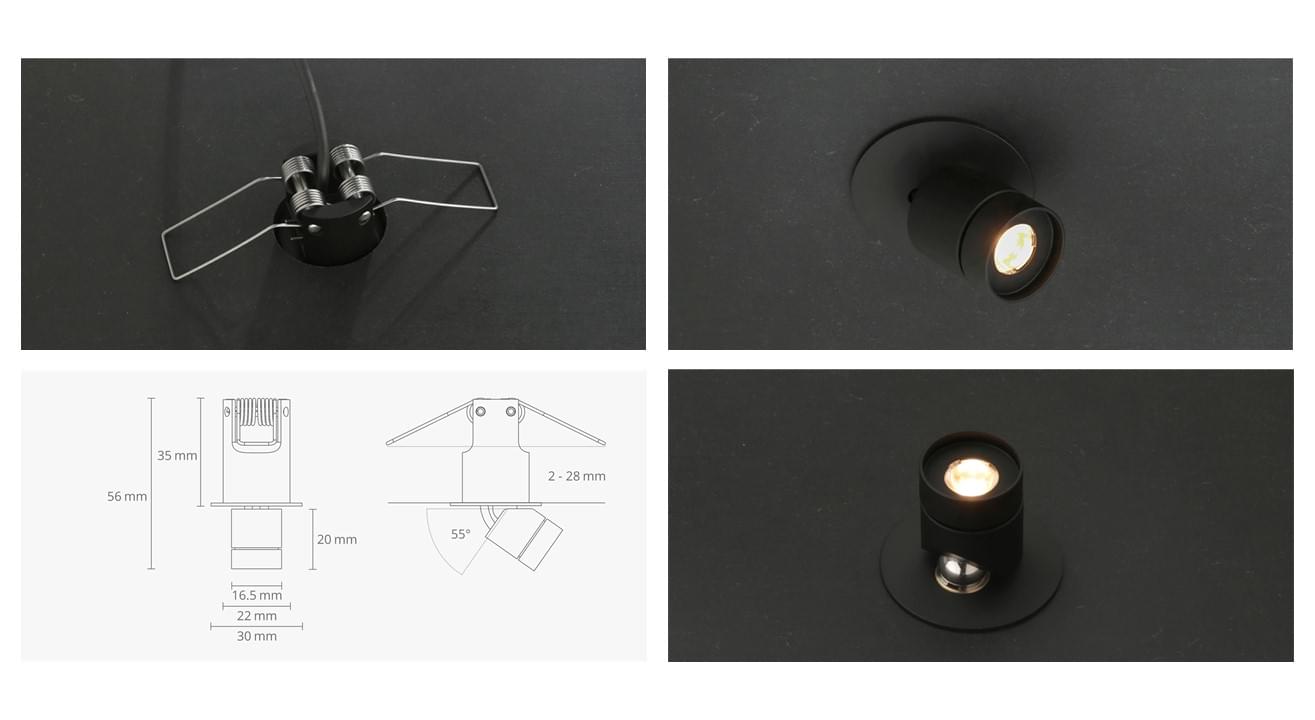

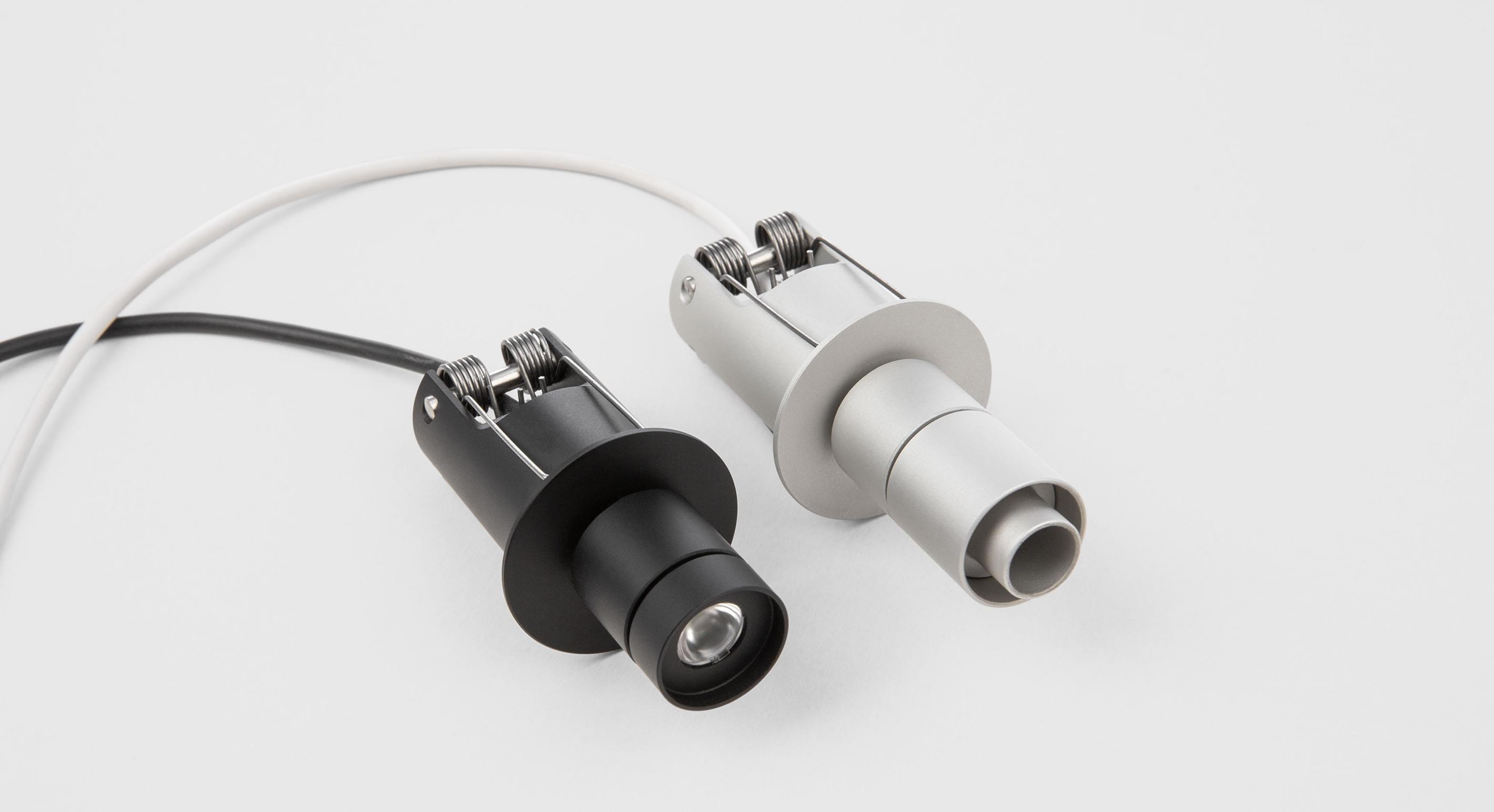

LED spotlight for installation in display case ceilings

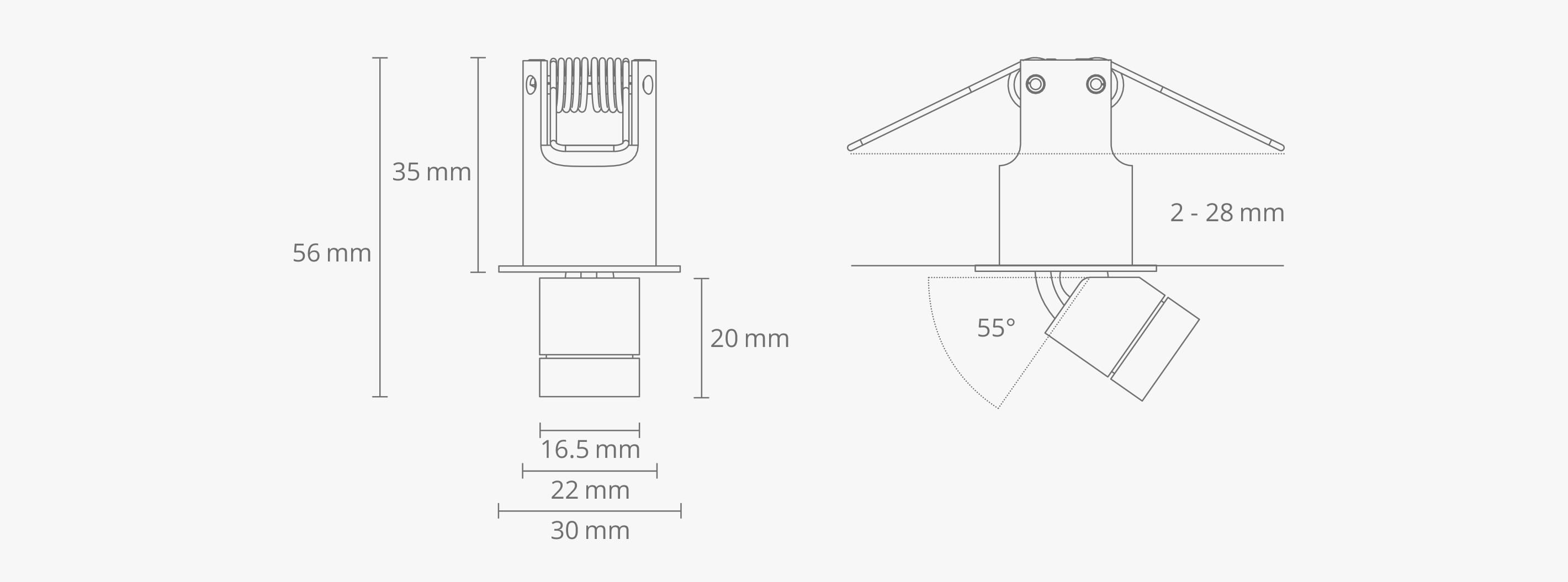

360° rotatable, 55° swivelled

  • housing colour: aluminium anodised black, silver, gold (other surface finishing on request)
  • light colour (+/- 100K): 2700K, 3000K, 4000K, 5700K
  • max. luminous flux: 150lm
  • max. power consumption: 2.1W
  • LED driver: external
  • power input: constant current up to max. 700 mA
  • dimming: external
  • protection class: IP 20
  • additional accessory:
    - lenses: 15°, 18°, 26°, 30°, 45°, 80° und 47°+ 25°, 40°+ 10°
    - honeycomb grid, anti-glare tube, inclined tube, light diffusion foil, barn door
    - zoom optic

See specifications for more information or click here
