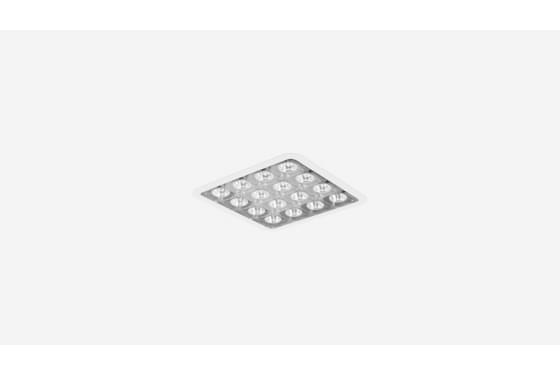

Reggiani Cells recessed- Flush OUTDOOR
Developed on the basis of the surface-mounted version, recessed Cells adopts the same advanced control optics so it is possible to select the best option for general lighting or bespoke applications. The range offers two diffuser options - flush and drop.
- New version of the CELLS luminaire for ceiling-mounted recessed installation
- LED sources placed in recessed position to maximize visual comfort (UGR < 19 for version with narrow, medium, rectangular and asymmetric beam)
- Degree of protection: IP66 / IK10
- High resistance (IK10) and high transmittance plastic diffuser (transparent and opal)
- Standard light distributions available: narrow, medium, wide, very wide, asymmetric, rectangular and double asymmetric, as well as bespoke distribution options
- Emergency version available (3-hr back-up)
- Control systems: On/Off, Dali, Dim1-10V, Phase-cut, DALI + Bluetooth
- Remote driver enclosure (IP66)
- Efficacy up to 94 lm/W
See specification for more information or click here
