Reggiani Trybeca recessed luminaires
Ideal for transforming interiors with diffuse a lighting, Trybeca is a family of recessed, surface-mounted and pendant luminaires based on the clean lines of three simple shapes: circle, square and rectangle. Trybeca comes with three interchangeable spacers that can be used for recessed, flush or drop mounting of the diffuser. The Trybeca Recessed Drop version has a diffuser that drops further for even softer and more aesthetically pleasing light distribution. Available in the special WARM DIMM version for adjusting the colour temperature from 1700K to 3000K. IP20 protection rating standard, available on request IP44. Metallized internal reflector designed to control the light beam with perfectly uniform illumination.

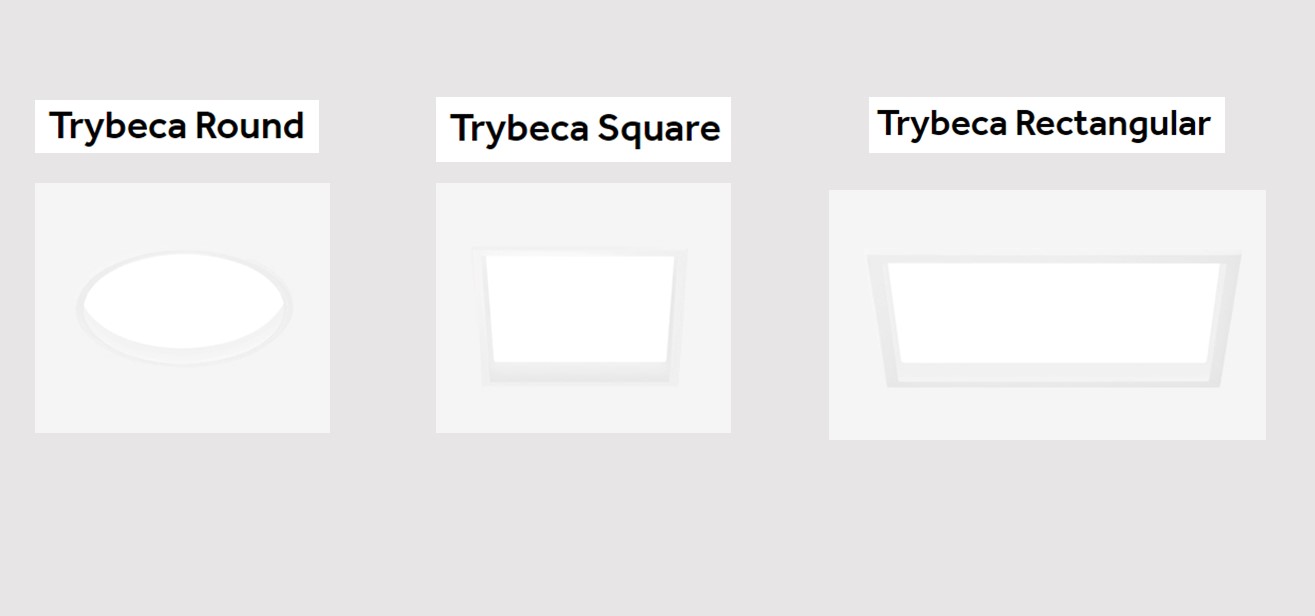

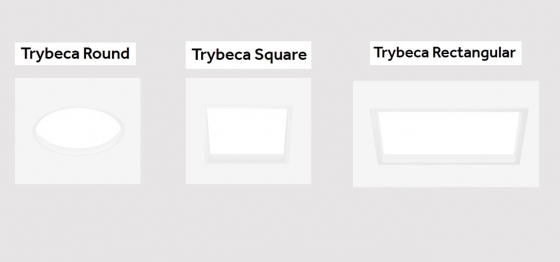

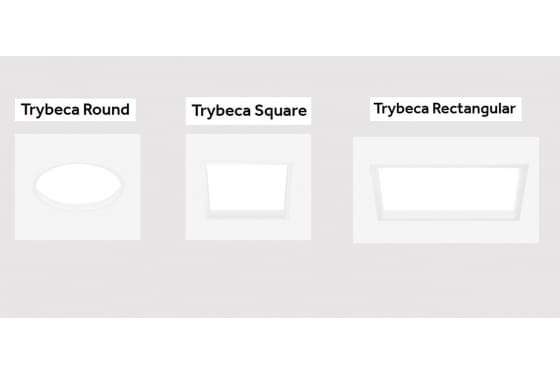

Reggiani Trybeca Round
- Luminous flux up to 4096 lm and CRI > 90
- Available in four sizes: Ø38mm, Ø75mm, Ø150mm and Ø300mm
See specification for more information or click here
Reggiani Trybeca Square
- Luminous flux up to 4070 lm and CRI > 90
- Available in four sizes: 38mm, 75mm, 150mm and 300mm
See specification for more information or click here
Reggiani Trybeca Rectangular
- Luminous flux up to 2613 lm and CRI > 90
- Available in three sizes: 75x118mm, 150x210mm and 300x183mm.
See specification for more information or click here
