Lucent Lighting DUO

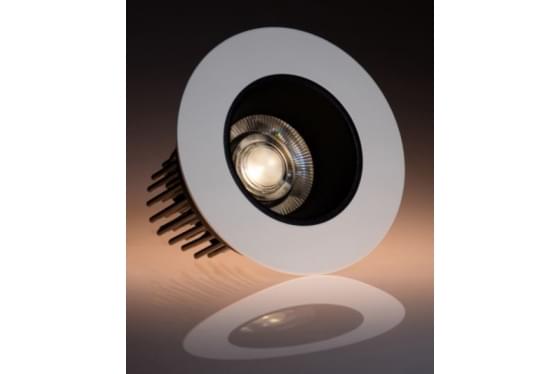

Monochrome downlights in white finish with fine black textured interior. Fixed, accent and wallwash fixtures create this family of low reflectance and deep regressed architectural LED downlights. Available for trimless installation or with minimal overlap flange for existing ceilings. Ball catch mechanism allows easy rotation and removal from the ceiling kit. For all LED51 modules. Duo can also be supplied to accept MR16 and GU10 LED lamps. All fixtures accept lenses and louvres to add effect.
DUO Fixed trim/trimless
- Aperture: Ø60mm
- Overall Dimension: Ø108mm
- Ceiling Cut Out: Ø98mm
DUO Accent Trim/Trimless
- Aperture: Ø60mm
- Overall Dimension: Ø108mm
- Ceiling Cut Out: Ø98mm
- Adjustable: 35°
DUO Wallwash Trim/Trimless
- Aperture: Ø60mm
- Overall Dimension: Ø108mm
- Ceiling Cut Out: Ø98mm
See specification for more information or click here
