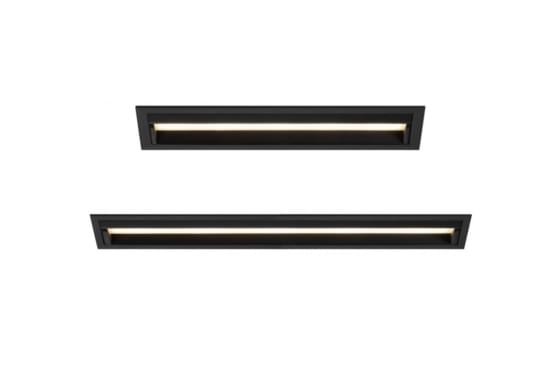

Line 5 Wallwash Trim: 41 x 145mm (1.61” x 5.71”) overall dimension.

Line 5 Wallwash Trimless: 30 x 135mm (1.18” x 5.32”) overall dimension

Fully recessed wallwash downlight for interior installation. Family of matching products also available. Required depth 110mm

• LED Source: LED
• CCT: 3000K
• Drive Current: 700mA
• Power inc Driver: 13W
• Beam Angle: 65°
• Delivered Lumens: 433
• Delivered Intensisty cd: 301
• Efficacy lm/w: 33
• Forward Volt: 15V
• CRI: ≥90 CRI

Line 10 Wallwash Trim: 41 x 279mm (1.61” x 10.98”) overall dimension.

Line 10 Wallwash Trimless: 30 x 270mm (1.18” x 10.63”) overall dimension

Fully recessed wallwash downlight for interior installation. Family of matching products also available.

• LED Source: LED
• CCT: 3000K
• Drive Current: 700mA
• Power inc Driver: 26W
• Beam Angle: 65°
• Delivered Lumens: 823
• Delivered Intensisty cd: 572
• Efficacy lm/w: 32
• Forward Volt: 30V
• CRI: ≥90 CRI
