Specificatie Lucent Line Cube 2LED Trim/ Trimless (pdf) |
Lucent Line Cube 2LED Trim/ Trimless

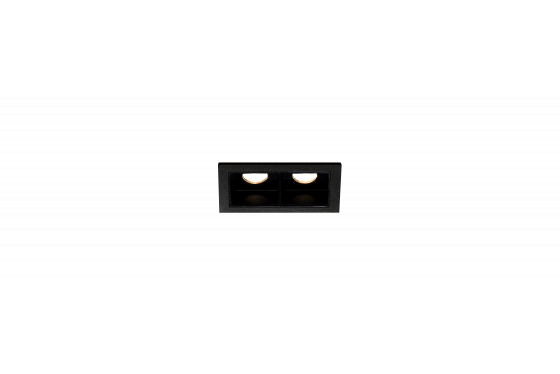

Lucent Lighting Line Cube 2LED Trim: Two LED trimmed downlight with low-glare cube apertures. Available in black and white fine texture finish. Also available with flare aperture.
SPECIFICATION OVERVIEW
- Overall Dimension: 65 x 41mm
- Overall Height: 45mm
- Required Depth: 75mm MIN
- Ceiling Cut Out: 59 x 35mm
- Ceiling Thickness: 25mm MAX
- Ingress Protection: IP20
Lucent Lighting Line Cube 2LED Trimless: Two LED trimless downlight with low-glare cube apertures and separate plaster-kit for plaster ceilings.
Available in black and white fine texture finish. Also available with flare apertures.
SPECIFICATION OVERVIEW
- Overall Dimension: 53 x 30mm
- Overall Height: 50mm
- Required Depth: 75mm MIN
- Ceiling Cut Out: 59 x 35
- Ceiling Thickness: 25mm MAX
- Ingress Protection: IP20
- First Fix Requirement: Yes
See specification for more information or click here
